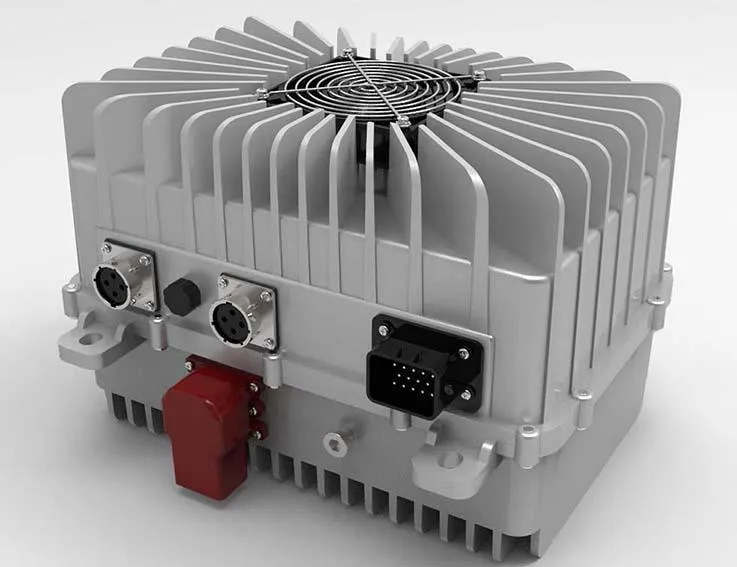

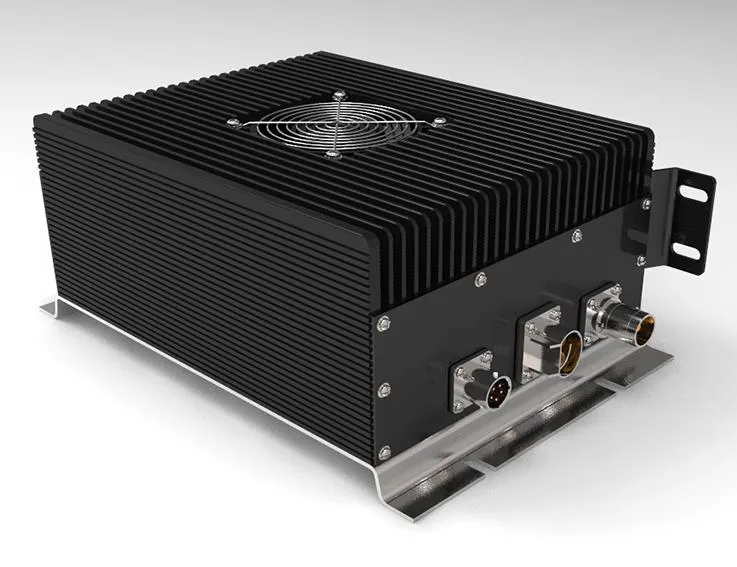

110V 3.3KW EV Battery Charger

1.Application

The shell of this series charger adopts integrated die-casting structure; the inside of the machine adopts glue filling process; suitable for liquid-rich lead-acid batteries, sealed (colloid) lead-acid batteries, lithium batteries, nickel-metal hydride batteries, nickel-cadmium batteries, etc. , Electric motorcycles, sightseeing cars, patrol cars, forklifts, communications, electricity, ships, etc.

Specifications

Specifications

Input Voltage Range:   90-265VAC

Output Voltage:         72VDC/144VDC/320VDC/384VDC (Custom-made is acceptable)

Max Output Power:     3.3KW

Low-voltage output voltage: 13.5V (Optional)

Low-voltage Output Current: 4A (Optional)

High Efficiency:               ≥94%

IP Level:                     IP54

Communication Interface:   CAN2.0

Product Size:             288*195*124mm

Product Weight:          ≤7kg

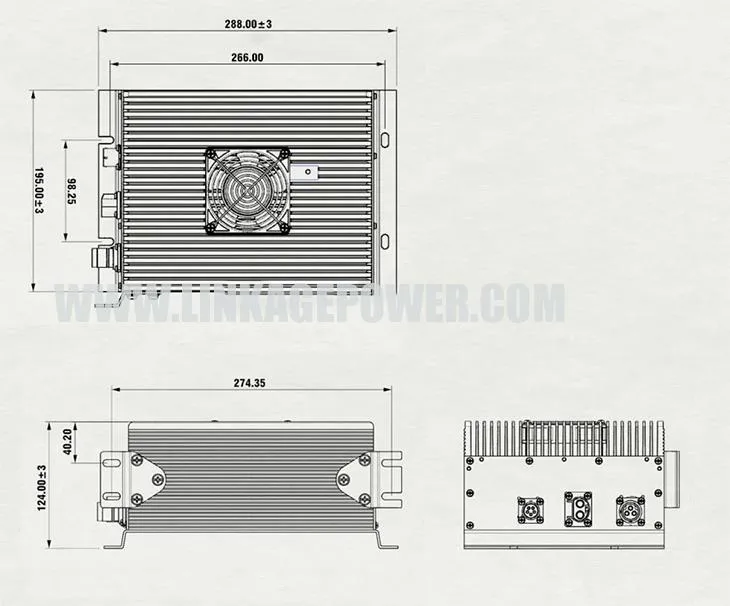

Mechanical Size

In order to confirm if our charger is suitable for your battery pack, please send the following infomations to us by email:

(1) battery type:

(2) number of cells in series:

(3) capacity of battery pack(AH):

(4) The maximum charge voltage:

(5) AC input volt:

(6) with CAN or enable:

(7) if with CAN, tell us the BMS brand

AC cable and DC cable: matching socket without AC/DC cable.

FAQ:

Lithium/Lipo battery charger

Lifepo4 battery charger

Lead acid battery charger

Nimh/Nicd battery charger

Q2. What is the warranty of your products?

A: 2 years. we can offer the new ones to replace that defective products under warranty.

Q3: What certifications you have?

A: CE ROHS CB GS FCC UL SAA KC KCC PSE CCC for most of products

Q4. What is the lead time?

A: 2-5 days for samples, 12-15 days for mass order. 14 days for new designing.

Q5. What is the shipping way?

A: samples by air, mass order by air or sea. air shipment always choose Fedex,TNT, UPS, DHL with 4-5 days arrival.

Q6. What is the charging mode for your battery chargers?

CC--CV mode for Lithium ion/Lifepo4 Battery charger

CC--CV--Float mode for lead acid battery

CC--CV--Trickle mode for nimh battery
