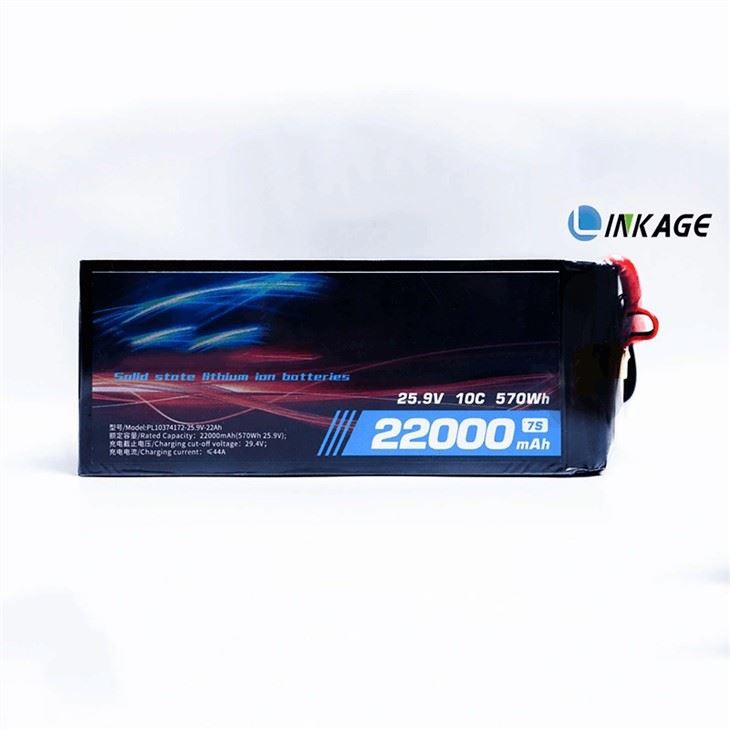

Solid State Battery 7S 25.9V 27000mAh

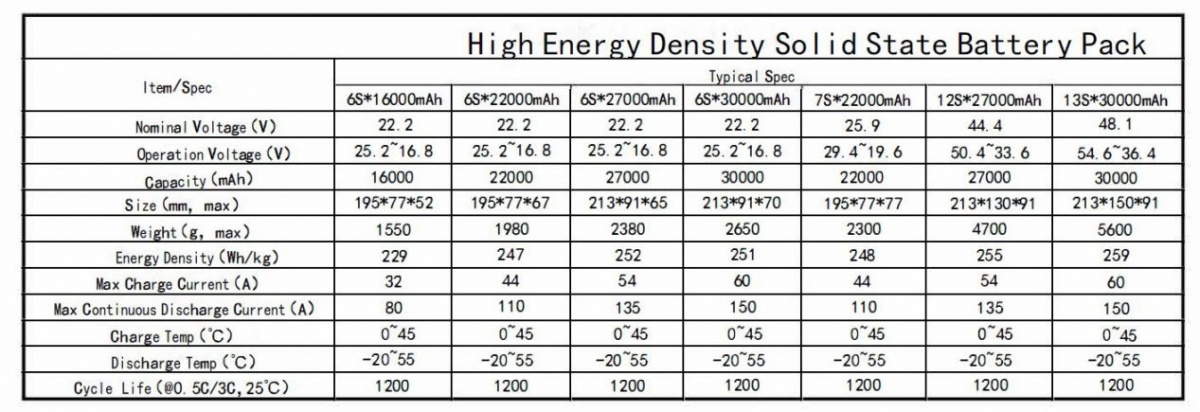

Product parameters
Specification | The specific parameters |
Nominal voltage（V ） | 25.9 |
Working voltage（V ） | 29.4~19.6 |
Capacity（mAh） | 22000 |
Size（mm,max） | 195*77*77 |
Weight（kg, max） | 2.30 |
Energy density( Wh/kg ) | 252 |
Maximum continuous charging current（A） | 44 |
Maximum continuous discharge current（A） | 110 |
Charging Operating Temperature（℃） | 0~45 |
Discharge operating temperature（℃） | -20~55 |
Cycle life（cycles@0.5C） | 1200 |
7 s 25.9 volts
Super High Energy Density
Much Higher Safety than normal LIPO and Li Ion
5 c grade for continuous discharging
Lifetime warranty
2C Quick charging capacity
waterproof
Built with 100% fresh batteries
Engineering drawings are available upon request
Made of high-grade silicone sheath line. The wire gauge is determined by plug selection.
We added connectors and JST-XH balance connectors
Flexibility prospects. Extremely good cycle life.Even brittle ceramic materials are often bendable after thicknesses down to the millimeter scale, and the material becomes flexible. Correspondingly, the flexibility of all-solid-state batteries will also be significantly improved after being thinned. By using appropriate packaging materials (not rigid shells), the fabricated batteries can withstand hundreds to thousands of times of bending to ensure performance. Basically no decay.
safer. The following dangers may occur in traditional lithium batteries: (1) Lithium dendrites may appear when working under high current, thereby piercing the diaphragm and causing short-circuit damage (2) The electrolyte is an organic liquid, and side reactions, oxidative decomposition, generation Gases and the tendency to burn will intensify. Using all-solid-state battery technology, the above two problems can be solved directly [2]
Since the scientific community believes that lithium-ion batteries have reached their limits, solid-state batteries have been regarded as batteries that can inherit the status of lithium-ion batteries in recent years. Solid-state lithium battery technology uses glass compounds made of lithium and sodium as conductive materials to replace the electrolyte of previous lithium batteries, greatly improving the energy density of lithium batteries.
Battery Discharging Curve
Battery Charge Curve
Battery Low Temperature Discharging Curve
4.55℃ High Temperature Discharging Performance
If you want to know more details for the Solid State Drone Batteries you can check for this:
We can supply any connector and wire gauge you like for balance tap and main connector. The battery can also be used as a “smart battery” with a built-in BMS and a hard case. We can also supply batteries of any voltage or capacity you need, as they are assembled and ordered in the United States. Custom configurations are available upon request. Contact us via live help, email info@linkagepower.com or by phone at +86 15919976170 with your specific requirements.
Why choose us?
- Our batteries have a longer lifespan than traditional Li Ion Batteries.
- With experienced and skilled staff in the area of Solid State Battery 7S 25.9V 27000mAh, we continue to innovate our product portfolio and provide products to our customers.
- We offer flexible payment terms to our customers to make our products more accessible.
- We have an international professional operation team to provide customers with customized comprehensive service solutions to enhance their market competitiveness.
- Our manufacturing facility has strict safety and quality standards in place to ensure the highest level of production.
- Through our unremitting efforts, our new technological achievements continue to emerge, and the development of new Solid State Battery 7S 25.9V 27000mAh continues to make new progress.
- Our team of professionals is committed to delivering the best solutions to our customers.
- We are embracing the changes brought about by the times with an active and open mind, and we will further develop and innovate in the future.
- Our Solid State Li Ion Batteries offer a longer cycle life than typical Li Ion Batteries, making them more cost-effective in the long run.
- Our company has gradually completed the domestic marketing strategy layout, extending from the international market to the domestic market, realizing a gorgeous change in the marketing pattern.
