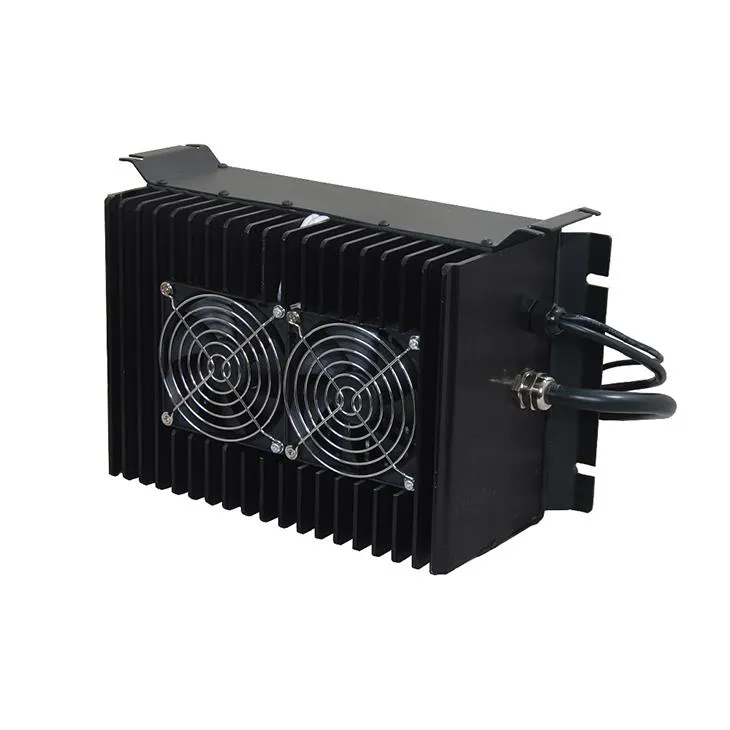

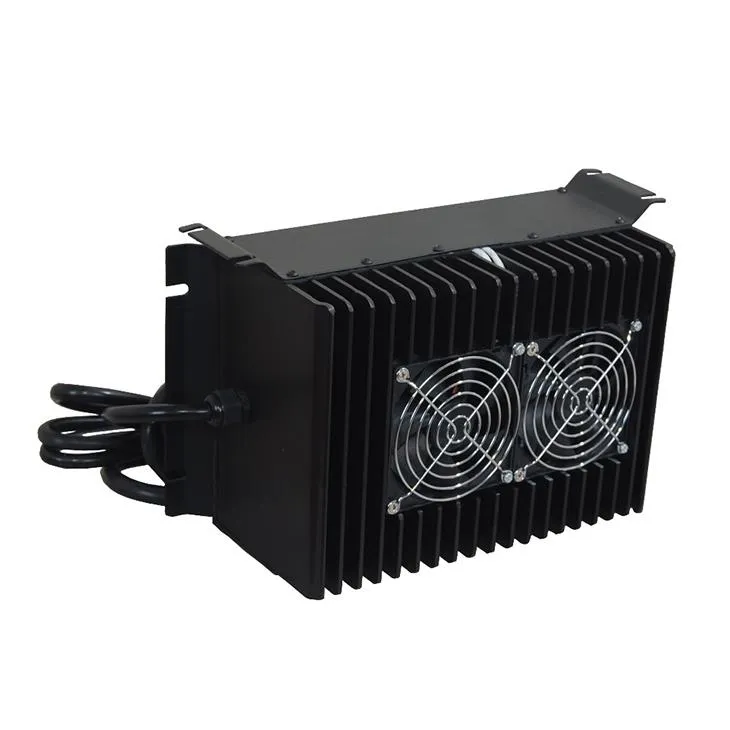

24V 1500W Fast Charging Charger
Up to 1500W 24v 30a 36v 20a 48v 15a 60v 12a 72v 10a 20a lithium ion lipo battery charger for citycoco motorcycle AGC AGV scooter car vehicle
Specifications:
size | 344*165*120mm |
net weight | 6.5kg |
max output power | 1500W |
certfication | CE RoHS |
Features:
1. Full automatic,predict,CC,CV,CP,Segmented timing, A variety of charging mode selection. Communication with BMS. .
2. Precise limit of voltage¤t,guarantee full charged and avoid over charger.
3. Over current, over voltage, short circuit, reverse connect protection, overheating protection, safe and reliable
4. LED display, Aluminum shell, beautiful and strong, Vehicle shock, waterproof grade:IP46
5. Active power factor correction PFC, conversion efficiency > 99%, can realize zero pollution to power network, avoid big current impact on power grid.
6. Intelligent temperature compensation, can avoid lead-acid battery charging process appear overcharge or owe charge causes damage. Can greatly prolong the life of battery.
7.all kinds of production has passed the CE certification.
8.Efficiency: ≥88 %( full capacity)
Operate Condition:
1.Temperature: -10~45 Degree
2.Hi-pot: ≥AC1500 (P to S),≥AC1500 (P to FG)
3.Life Expectancy: 50,000H at 25 Degree
Apply to:
1. Electrical forklift
2. Electrical motorcycle
3. Electrical tourist-car
24V 36V 48V 60V 72V Lead acid Sweeper Truck Battery Charger 50A 40A 30A 25A 20A
ESFP-1800W(PFC/waterproof)Battery charger datasheet | |||||||||
No. |
Spec |
Constant voltage |
Constant Current |
Conversion/Cut off |
Weight |
Size | |||
LA |
Li-Mn |
LiFePo4 |
(Max)A |
LA (A) |
Li(A) | (kg) | (mm) | ||
1 | FP24 | 29.4V | 29.4V | 29.2V | 40 | 8.0 | 4.0 | 6.5 | 344*165*120 |
2 | FP36 | 44.1V | 42.0V | 43.8V | 33 | 6.6 | 3.3 | ||
3 | FP48 | 58.8V | 54.6V | 58.4V | 25 | 5.0 | 2.5 | ||
4 | FP60 | 73.5V | 67.2V | 73.0V | 20 | 4.0 | 2.0 | ||
5 | FP72 | 88.2V | 84V | 87.6V | 16 | 3.2 | 1.6 | ||
1 | Full automatic,predict,CC,CV,CP,Segmented timing, A variety of charging mode selection. Communication with BMS. | ||||||||
2 | Precise limit of voltage¤t,guarantee full charged and avoid over charger. | ||||||||
3 | Over current, over voltage, short circuit, reverse connect protection, overheating protection, safe and reliable | ||||||||
4 | LED display, Aluminum shell, beautiful and strong, Vehicle shock, waterproof grade:IP46 | ||||||||
5 | Active power factor correction PFC, conversion efficiency > 99%, can realize zero pollution to power network, avoid big current impact on power grid. | ||||||||
6 | Intelligent temperature compensation, can avoid lead-acid battery charging process appear overcharge or owe charge causes damage. Can greatly prolong the life of battery. | ||||||||
7 | CE&RoHS certified,Safety and Hige Quanlity | ||||||||
Cut-off point Li battery is 5% of CC,and it can be set between 3%-10%. | |||||||||
We adopt high -rate switching mode technology.Our charger's advantages are high quality,stable,smart,portable and effcient(up to 93%).It has aluminium case,elegant appearance,light weight and small size.We own high-level developing engineers and manufacturing staffs and have abilty to manufacture large order.
FAQ:
Lithium/Lipo battery charger
Lifepo4 battery charger
Lead acid battery charger
Nimh/Nicd battery charger
Q2. What is the warranty of your products?
A: 2 years. we can offer the new ones to replace that defective products under warranty.
Q3: What certifications you have?
A: CE ROHS CB GS FCC UL SAA KC KCC PSE CCC for most of products
Q4. What is the lead time?
A: 2-5 days for samples, 12-15 days for mass order. 14 days for new designing.
Q5. What is the shipping way?
A: samples by air, mass order by air or sea. air shipment always choose Fedex,TNT, UPS, DHL with 4-5 days arrival.
Q6. What is the charging mode for your battery chargers?
CC--CV mode for Lithium ion/Lifepo4 Battery charger
CC--CV--Float mode for lead acid battery
CC--CV--Trickle mode for nimh battery
Why choose us?
- We take pride in manufacturing Lithium Battery Chargers that are reliable, efficient, and durable.
- Our 24V 1500W Fast Charging Charger is a new product with the advantages of energy saving, environmental protection and economy, which is in the leading level and has been well received in the market once it is launched.
- We work closely with our customers to develop Lithium Battery Charger solutions that meet their unique needs.
- We will make more valuable contributions to the success of building a moderately prosperous society in an all-round way and the sustainable development of human society.
- Our Lithium Battery Chargers are of top-notch quality and our service is unparalleled.
- We have an important influence in the industry, which provides a strong guarantee for the steady improvement and high-quality development of the enterprise.
- We're your one-stop-shop for Lithium Battery Chargers that meet your specific needs and requirements.
- We always adhere to the cornerstone of safety production and uphold the policy of safety first.
- We're a Chinese factory that produces high-quality Lithium Battery Chargers and provides professional services.
- As a socially responsible corporate citizen, we always focus on the consumer, and through scientific and technological innovation, we achieve low energy consumption production.
