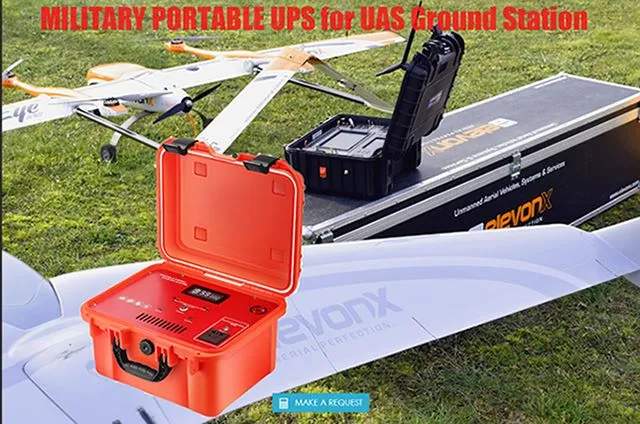

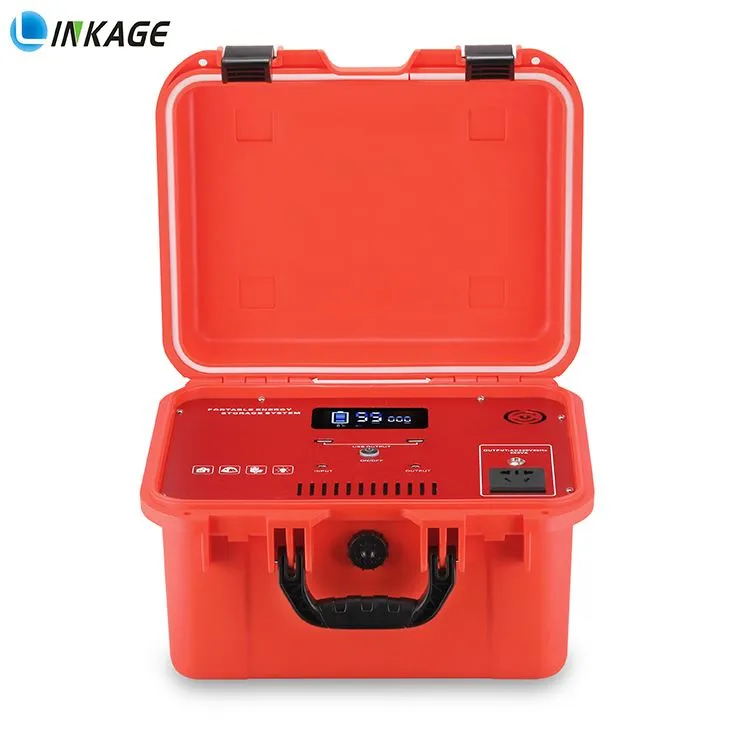

Military Portable UPS 1000W 12V 80AH

Multifunctional Portable Outdoor Emergency Backup Power 1000W

2.1 Battery PACK Spec:

Item Specification Remark

Cell Type: LiFePO4 27135206 3.2V 80Ah LiFePO4

Configuration:4S1P

Nominal Voltage: 12.8V

Charge Voltage: 14.4V

Nominal Capacity: 80Ah 0.2C TO 14.4V@23℃

Standard charging current: 15A

Max Charge current :20A

Charge Cutoff current ≤800mA

Standard Discharging current :40A

Max Discharging current: 50A

Discharging cutoff Voltage: 11.2V

BMS Inner consumption ≤150uA

Initial resistance ≤20mΩ

Recycle Life ≥80% @2000 cycles（0.5C Dis） 25℃

 Technical Spec:

Item  :   Specification

Name : 1024Wh Portable Energy-Box

P/N:      Energy-Box

AC OUTPUT SPEC: AC220V 50Hz 500W(Pure sine wave)

USB Output: 5V 2.4A

DC 12V Output: 12V/5A

Charger Spec AC INPUT：100~240V AC

DC OUTPUT： DC 20V 5A

Charging time Approximately 10h（full charge）

Operational Temp Discharge ：-20~+50℃

Charge ：0℃~+50℃

Humidity <90%

Entire equipment weight 12KG

Product Function:

 1.Panel Function

 USB output function

USB1 and USB2 are mainly used to charge mobile phones, digital cameras and other conventional 5V charging

digital products.

 DC12output function

DC5521 female is mainly output 12V, can be used for 12V lighting bulbs,

and other 12V power supply equipment

 AC 220V 50Hz AC output

The output power is up to 500W, which can be used to power some small appliances.

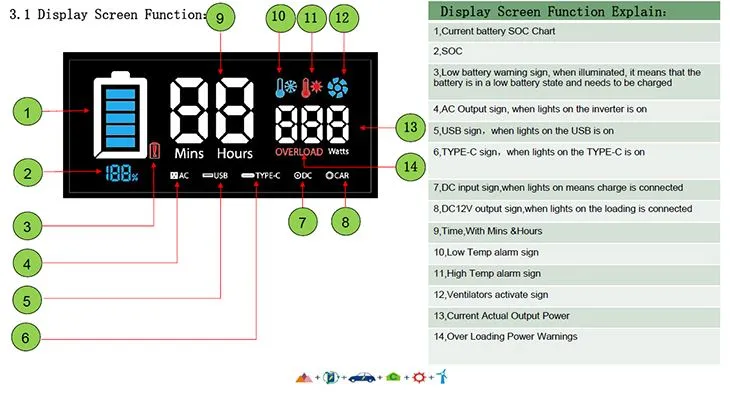

 Display function

It can accurately display the current input or output power, calculate and display the discharge or charging

time, and display the function identification and status

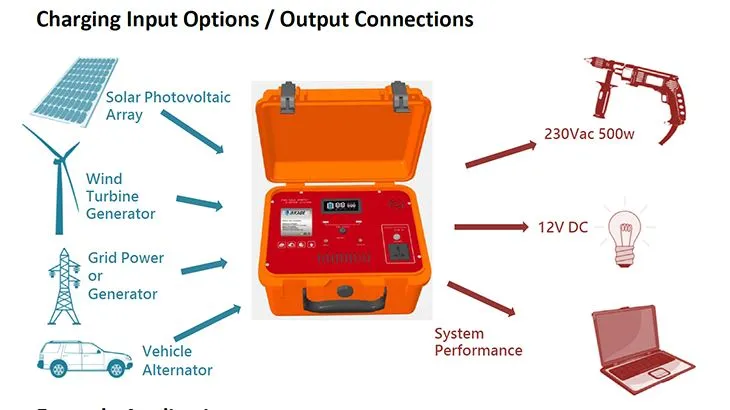

Charging function

Charging input 20V5A, support solar charging

Operational Manual

Operation instructions:

1. The panel switch is located in the most central position. It is a

self-locking switch. When you press it to turn it on, the display

lights up, and you can see the current power.

2. Inverter output switch is located above the AC outlet. When

using the inverter, you need to press the switch first to start the

inverter.

Output power display, when the output power is greater than

the input power, it is displayed as the output power (that is, the

output power minus the input power is the actual output

power, and the display time is the continuous output time of the

current actual discharge. When the charging power is greater

than the discharge power, it is displayed as the actual input

Power, the time displayed is the time required for the current

charge)

Warranty

The company promises: from the date of purchase, to provide you with one year of free warranty service

■ Warranty with valid purchase invoice and valid purchase certificate

■ Warranty by machine serial number

The following situations occur and are not covered by the warranty:

■ Human fault

■ Damage caused by improper handling, installation, use, maintenance and storage

■ After the free warranty period

■ Production serial number changed, missing finished product

■ Without valid purchase invoice and Three Guarantees certificate

■ The purchase invoice and the Three Guarantees certificate are altered or do not match the product

■ Damage or loss caused by irresistible external causes

■ Unauthorized dismantling or unauthorized dismantling by the factory

■ Violation of machine operation / use regulations

■ Make the battery deeply discharged or artificially cause damage

* The contents of this document are subject to change without notice.
