Portable Jump Starter UPS
Multifunction Car Start-Up Power（LINKAGE-500WPC）
Product Information
The world's first lightest, fashion design, built-in high-capacity lithium battery with AC output car start-up power products. This Can be used for online UPS power supply, but also as an outdoor emergency standby power and car start-up power use, has a wide range of uses. It built-in imported lithium battery, the total capacity of up to 12V 26Ah/ 288Wh, can provide you with a steady stream of electricity. This product with EC5 car start port, and equipped with a smart battery clip to prevent your car in the battery power shortage or damage caused by the trouble can not be launched. Both AC and DC outputs. When the mains power outage, desktop computers data is not loss and can continue to work more than 3 hours. 4 USB output, current up to 6.2A, can meet more than 98% of digital products charging requirements; 4 12V DC output, the total output current up to 10A；2 general AC output sockets (can do 3 American standard, 2 GB, 2 European standard, 2 France standard, 2 British standard, 2 Australian standard socket) to meet the indoor medical equipment, small printers, all kinds of lamps, small fish tank heater, notebook and outdoor camping, photography, fire emergency, rescue and other occasions need to provide lighting and AC power。Both AC mains, solar and car charging methods. Advanced circuit design, power devices are all imported. Advanced SMT and wave soldering manufacturing process, the process of computerized monitoring and management to ensure that the product of high reliability and stability.
Features
Fashion design, exquisite exterior, easy to carry.
Light weight, small size, large capacity , its size is only the 1/10 weight and 1/20 size of the similar product but with 5 times longer lifespan and 20 times capacity.
DC 5V USB、12V，AC 100V/110V/220V/230V output, can be according to the national demand for electricity design output jack type.
Five protection（over current、over discharge protection、voltage regulator protection、over power protection、over charge protection），let the electricity more safety.
Both AC mains, solar and car charge, a variety of charging methods to keep you away from the use of trouble.
Can be used for online UPS power supply, but also as an outdoor emergency standby power and car start-up power use use, widely used to meet the indoor medical equipment, small printers, all kinds of lamps, small fish tank heater, notebook and outdoor camping, photography, fire emergency, rescue and other occasions need to provide lighting and AC power.
Specifications
Model | LINKAGE-500WPC |
Capacity | Lithium 12V 26Ah 288Wh (Max 12V 31Ah 346Wh） |
Output Power | Rated 500W, Peak 1000W |
Output Waveform | Purified sine wave |
DC Output | 12V/3A×4 ports (10A MAX) |
USB Output | 5V2.1A*2 ports 5V1A*2ports |
LED Lamp | 1W, Max Can be 3W |
AC Output Voltage/Frequency | 110V 60HZ/120V 60Hz/220V 50Hz/230V 50Hz /240V 50Hz |
Solar Panel | 18V20W~100W |
AC Input Voltage/Frequency | AC 90V~140V 50/60Hz AC 170V~260V 50/60Hz |
Car Start Up Current | ≤300A |
Overload Protection | After overload, the AC output is disconnected, the AC output indicator lights red, disconnects the load, restarts after power-on |
Short Circuit Protection | After short circuit, the AC output is disconnected, the AC output indicator lights red, disconnects the load, restarts after power-on |
Product Weight | 3.4kg |
Product Size | 29*11*13.5cm |
Product Color | Yellow |

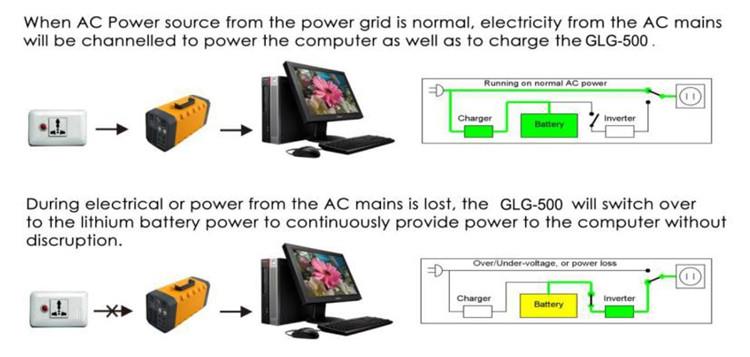

UPS Working Principle
Car Start Up Main Parameters
Discharge | Rated output current | 300A |
Peak current | 600A | |
Short circuit protection | OK | |
Low voltage protection | 11V | |
Output automatically detect load | OK | |
The output automatically shut down time | 180S | |
Reverse filling protection | OK | |
Over voltage protection | ≧12.6V | |
To start the car emissions | ≦5.0 | |
Display and alarm | Short circuit overload alarm: the red light flashing + buzzer alarm; | |
| Low pressure alarm: the red light flashing; | ||
| Standby: red and blue lights flashing; | ||
| Output open: blue light long on; | ||
Backup Time
Load | Use Duration |
Phone charge 5V | Mainstream smart phone Charge about 30 times or more |
LED light 12V | 3W 12V LED light supply about 96 hours |
Office computer | PC+Display about 2~3 hours |
Laptop computer | Laptop 13” about 6~7 hours |
Fan | 50W Fan about 5 hours |
LCD TV | 32” LCD TV about 4 hours |
Energy-saving lamps | 20W Energy-saving lamp about 14 hours |

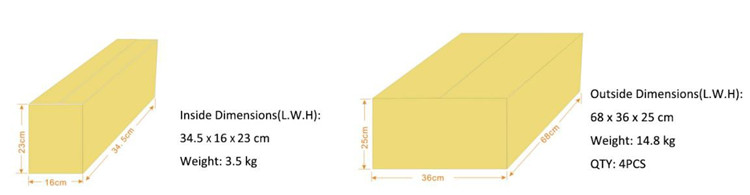

Package Details
No. | Parts | Qty |
1 | Power (LINKAGE-500WPC) | 1 |
2 | DC cable | 1 |
3 | Car charging cable | 1 |
4 | AC charging cable | 1 |
5 | Solar input charging connector | 1 |
6 | Car battery clip | 1 |
7 | User guide | 1 |
8 | LED Light 12V 3W（optional） | 1 |
9 | Solar panel 18V ≤100W (optional) | 1 |
