48V 300AH Stationary Telecommunications Battery

48V 300Ah stationary Telecom and data center battery

Spec. of 48V 300ah lithium battery pack:

1. Type: Li-ion battery with PCM

2. Nominal voltage:     48V

3. Typical capacity:    300Ah

4. Dimension: 365*276*310mm or custom

5. Max Charge voltage:     54±0.05V/

6. Discharger cut-off voltage:    40±0.05V

7. Max charge current:     150A

8. Max continuous discharge current: 600A

9. Max pulse discharge current:    150A

10. Charging temperature:    0°C~45°C

11. Discharging temperature:    -20°C~60°C

12. Storage temperature:    -20°C~45°C

13. About 500 cycles to 80% with 100% DOD under:  20 °C~25°C

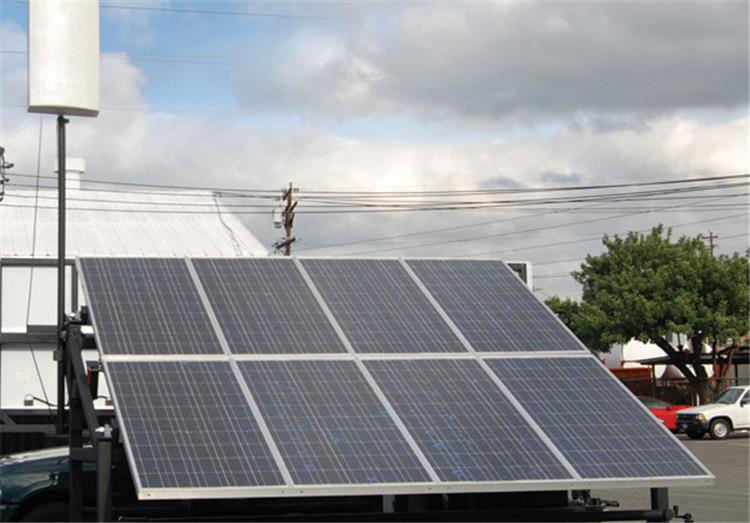

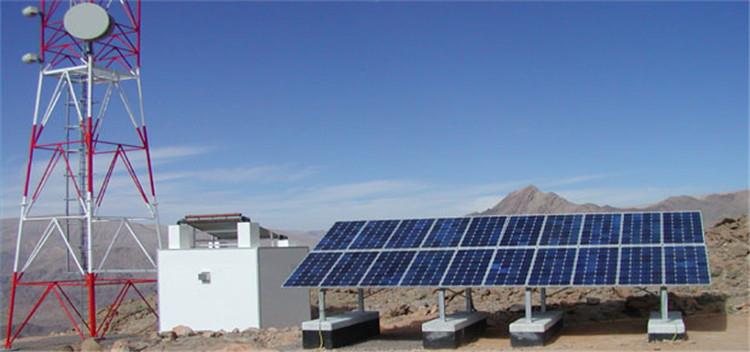

With RS485 232 interface，which those battery modules can be parallel to get a higher capacity.off-grid solar system storage, Telecommunication/BTS/Central data center/Power station/UPS

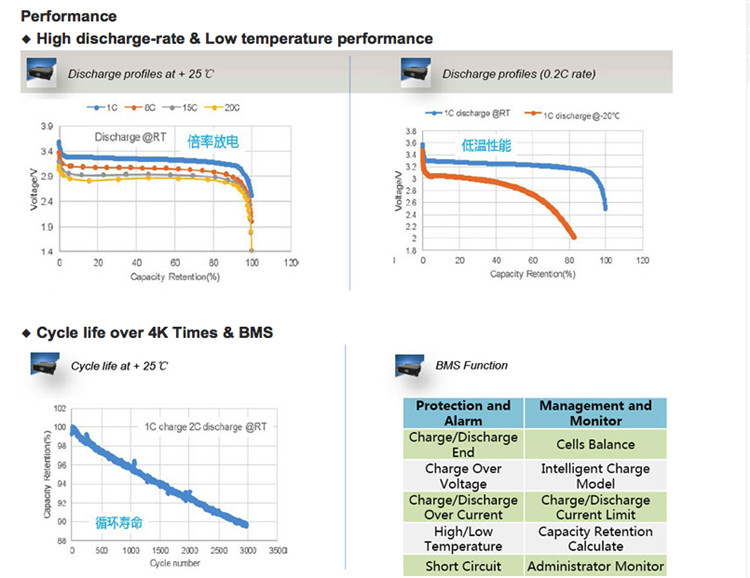

Basic Performance

(1)Output with high efficiency: Standard discharge current is 0.5C, instant impulse discharge current is 3C for 60 seconds.

(2)It is high integrated which save a lot installation space;

(3) High quality, with high temperature, it could work under 65°C temperature. The battery structure is reliable, without any heat stimulate,

(4) Good performance in low-temperature. discharge capacity decreases to over 80% under 0°C and discharge capacity decreases to over 60% under -20°C.

(5) Excellent safety characteristic: When the inside pressure  is too large, the one-way safety valve will release gas and heat to make sure battery safe，no explosion, When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion, even with short circuit, just melting itself, no bombing and fire.

(6) Good cycle life time and consistency the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).

High-performance material of lithium iron phosphate ,with perfect consistency battery cells and long recycling life

(7)It can support fast charging. It could be charged to 70% within 20 minutes and charged full with 2-3h.

(8)Full protection functions like high  and low voltage protection

(9)Cost effective to buy from us.

(10)Modular and quick plug design makes it easy to use and maintenance

Battery can be controlled with remote monitoring via communication interface.

BMS Feature

ASIC chip, high precision acquisition, automotive grade material, Lightning Surge Immunity Test, redundancy design, high temperature aging, electron- static discharge, EMC, current balancing technology, maintenance-free battery system, The water detection, smoke detection, collision warning system actively.

FEEDBACK

Temp. Balance & Bonding

Aluminum wire bonding process with bus-bar design, triaxial vibration design, waterproof and dustproof design, structure lightweight design technology, which solved the core issue of power battery, improving the safety, reliability and stability. At the same time, the problem of BATTERY heating, heat dissipation was managed by temperature equalization technology ,which improve the battery performance and life span. PLB continue to optimize the battery pack design, so as to ensure the safety of product.

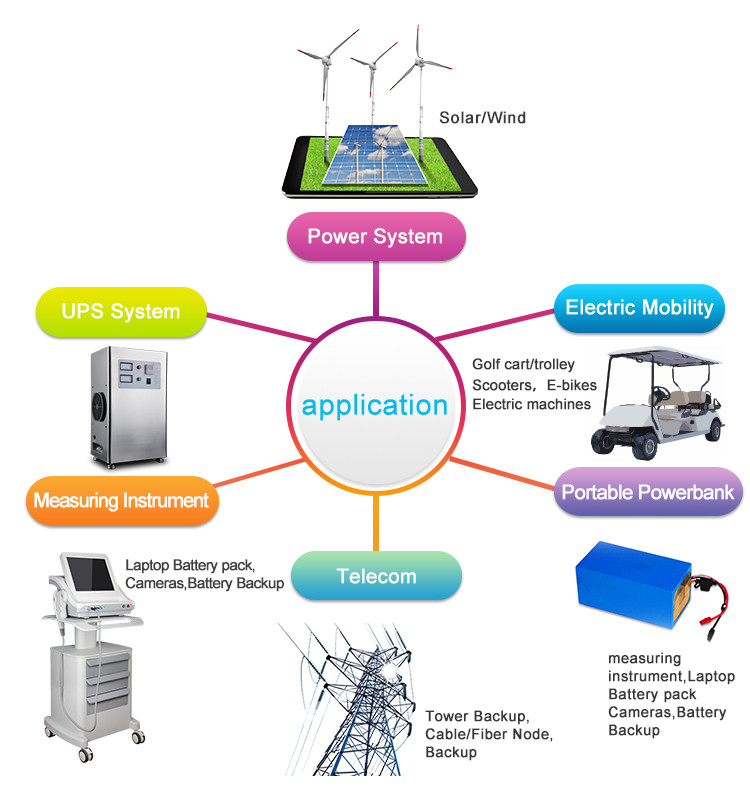

- - Lithium Batteries Application- -

1. Vehicles: Electric bicycle, golf car, electric wheelchair, electric scooter
2. Illuminate devices: Solar battery, miner lamp, solar street lamp, emergency light, electric torch, wind and solar system
3. Communication: Back-up electric supply, interphone
4. Power tools: Electric cropper, electric drill, electric saw, electric hammer, pump
5. Others: RC toy, small home appliance.

- - Service by us- -

1. Give you the specific battery pack within 24hours according to your requirements.
2. Professional: Professional technicians offer overall systematic service.
3. One-stop battery solution with battery cells, BMS, case and matching charger.
4. Beyond customer demand: To think more for customer, do better for customer and make customer more satisfied.
5. MOQ: 1 unit is ok for your first battery pack to be tested.
6. Warranty: 2years
7. Our solutions:

Why choose us?

• Our 48V LiFePO4 Telecom Batteries are designed to deliver outstanding performance and reliability.
• Our employees are passionate and energetic. They can adapt to our fast-paced, aggressive and result oriented corporate culture.
• Our products are backed by comprehensive warranties and exceptional customer service.
• Make small companies into big companies, and make big companies into everyone's company. The meaning of a large company is not simply a large scale, it should include a large scale, a large profitability, and a large core competitiveness. Only by combining the three factors, can the enterprise become better and stronger. Everyone’s company means co-creation of interests, sharing of interests, and sharing of risks. It is a community of interests.
• Our advanced manufacturing processes enable us to produce high-quality products at competitive prices.
• "Build an excellent team and create first-class quality" is the business philosophy of our enterprise.
• We are dedicated to providing our customers with the best possible value for their money.
• The company has a national 48V 300AH Stationary Telecommunications Battery product quality supervision and inspection center and a national 48V 300AH Stationary Telecommunications Battery product information center station.
• Our knowledgeable and friendly staff is always available to help our customers with any questions or concerns.
• We uphold the tenet of customer satisfaction and insist on high quality and professional manufacturing as our mission, and have established a perfect quality management system.
