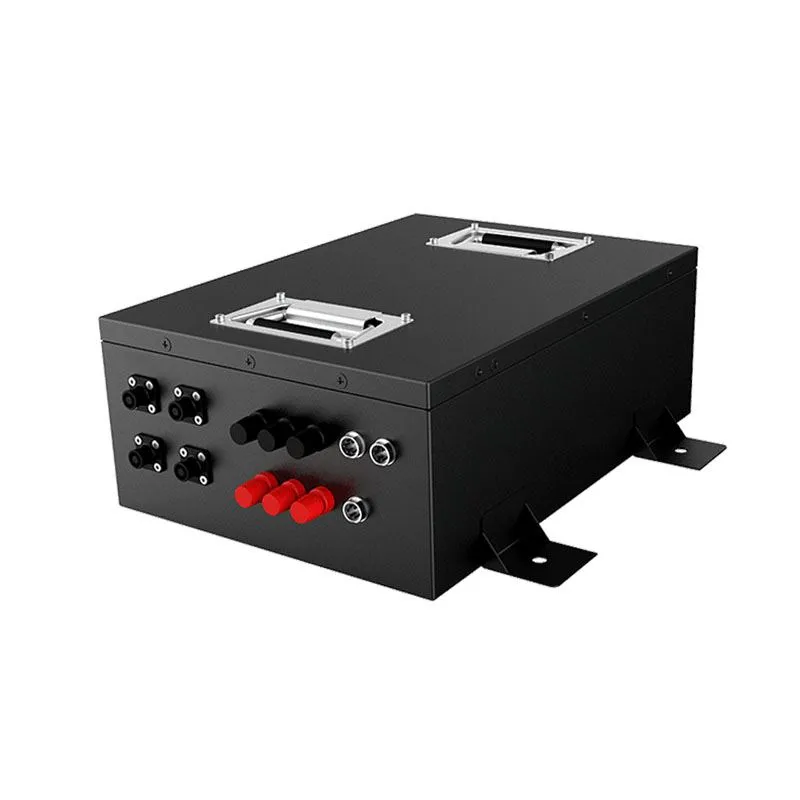

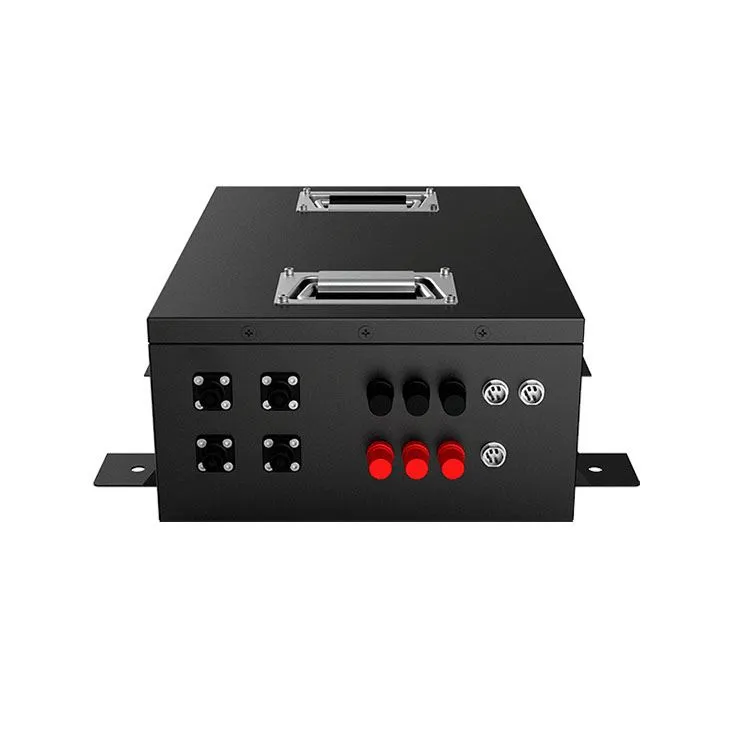

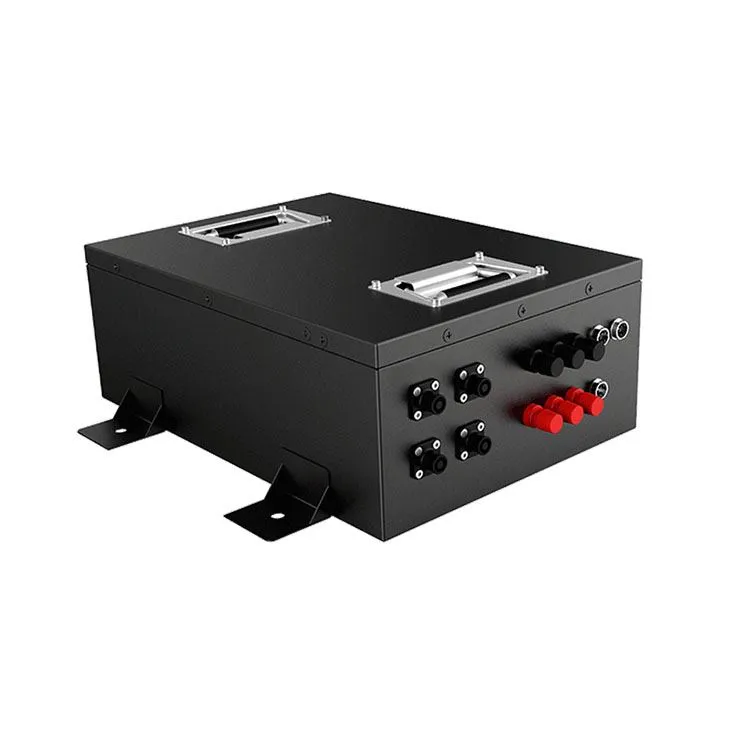

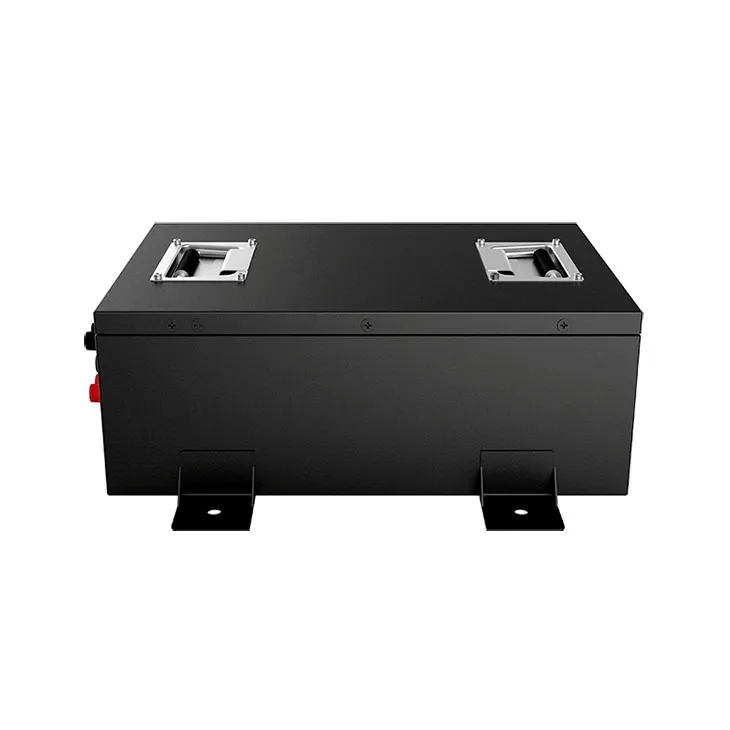

48V 50Ah For E Boat AGV

Specification

Cell model: 0150651500/3.2V/10Ah

Battery specifications: 15S5P/48V/50Ah

Nominal voltage: 48V

Nominal capacity: 50Ah

Charging voltage: 54.75V

Charging current: ≤15A

Discharge current: 100A

Instant discharge current: 150A

Discharge cut-off voltage: 30V

Internal resistance of finished product: ≤100mΩ

Battery weight: 30Kg

Product size: 420*300*170mm (Max)

Charging temperature: 0～45℃

Discharge temperature: -20～60℃

Storage temperature: -20～35℃

Temperature protection: 70℃±5℃

Battery shell: sheet metal shell

Communication management: CAN

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, balance, etc.

Application field: E Boat,AGV car

Applications:

Electric Propelling Applications

♦ Engine Starting Battery

♦ Commercial Bus and Transit:

E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,

E-truck, E-sweeper, Floor cleaner, E-walker etc.

♦ Intellectual Robots

♦ Power tools: electric drills, toys

Energy Storage

♦ Solar-Wind Power System

♦ City Grid (On/Off)

Back-up System and UPS

♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment

Features:

Features

High current output

Battery comes with temperature protection

Battery comes with power detection port

CAN communication management: SOC management, fault warning

Battery pack safety and long cycle life

The battery pack has a high cycle life, which is in line with the values of low carbon, energy saving and environmental protection

BMS Feature

ASIC chip, high precision acquisition, automotive grade material, Lightning Surge Immunity Test, redundancy design, high temperature aging, electron- static discharge, EMC, current balancing technology, maintenance-free battery system, The water detection, smoke detection, collision warning system actively.

FEEDBACK

Temp. Balance & Bonding

Aluminum wire bonding process with bus-bar design, triaxial vibration design, waterproof and dustproof design, structure lightweight design technology, which solved the core issue of power battery, improving the safety, reliability and stability. At the same time, the problem of BATTERY heating, heat dissipation was managed by temperature equalization technology ,which improve the battery performance and life span. PLB continue to optimize the battery pack design, so as to ensure the safety of product.

Advantage:

Longer Life

Our battery is with 3000 - 5000 cycles. On average, good quality lead acid batteries last between 100 - 300 cycles in a golf cart. After 150 cycles the lead acid batteries can produce less than half of their rated capacity meaning you get less than half of the range you got when they were new. In the long run, you would need to replace lead acid up to 10 times to get the same cycle life as 1 set of our battery

Lighter Weight/Higher Energy Density

Our battery weigh is about 70% lighter than lead batteries. A typically 48V golf cart will have around 500-600 lbs. of lead acid batteries. Switching to lithium will remove over 300 lbs. out of the cart. This will reduce the amount of energy required to get your cart up to speed and will help reduce wear and tear on your carts controller, motor, suspension, frame and tires.

Higher Voltage

Our battery hold a higher voltage during use than lead batteries. This equals more torque for your motor and allows the controller and electronics to run at their optimal efficiency. When you step on the pedal with lead batteries, the voltage can drop below 10V causing the controller to run inefficiently and providing less power to the motor which reduces torque. The higher voltage of our golf cart batteries will allow your cart to get up to speed quicker, and hold the speed higher, throughout the entire charge cycle and while going up hills.

Fast Charging

OUR batteries are 99.1% efficient whereas lead acid batteries can be as little as 50 - 80% efficient. When you charge lead acid batteries, you can lose anywhere from 10% - 50% of the energy from the charger to your batteries. This means 50% of the power used to charge your golf cart is being lost due to resistance from the lead batteries. Using your existing charger, lithium batteries can charge up to 50% faster. We recommends you purchase one of our chargers for your golf cart to get the best performance and longest life from our lithium golf cart batteries. OUR lithium batteries may be recharged in less than 1 hour when you purchase a high-speed lithium charger from us.

Higher Capacity

Our lithium golf cart batteries are designed to allow you to safely use 100% of the rated capacity without lowering the life expectancy. Lead acid batteries are only recommended to be drained 50%. Imagine filling up your gas tank with 100 gallons of gas and the car only being able to use 50 gallons before needing to refuel.

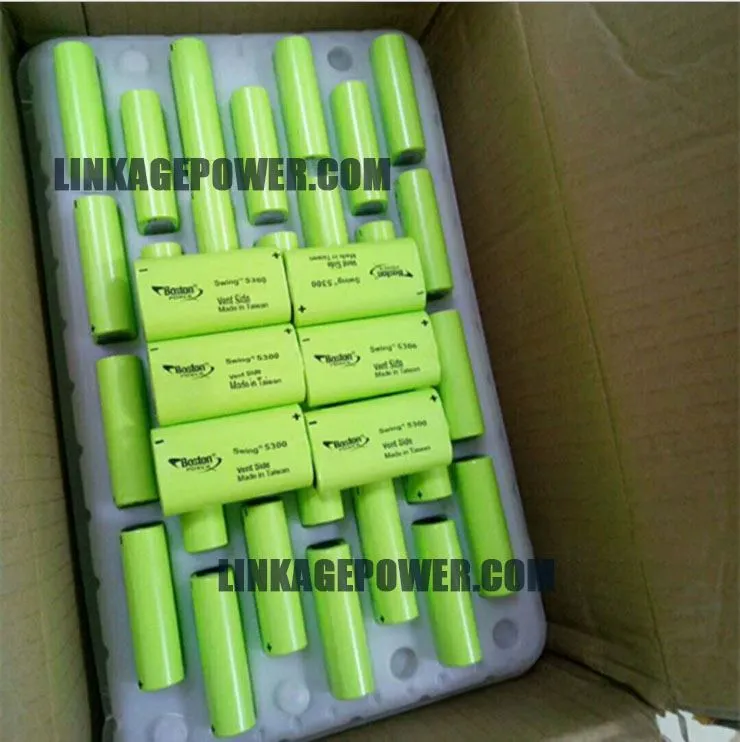

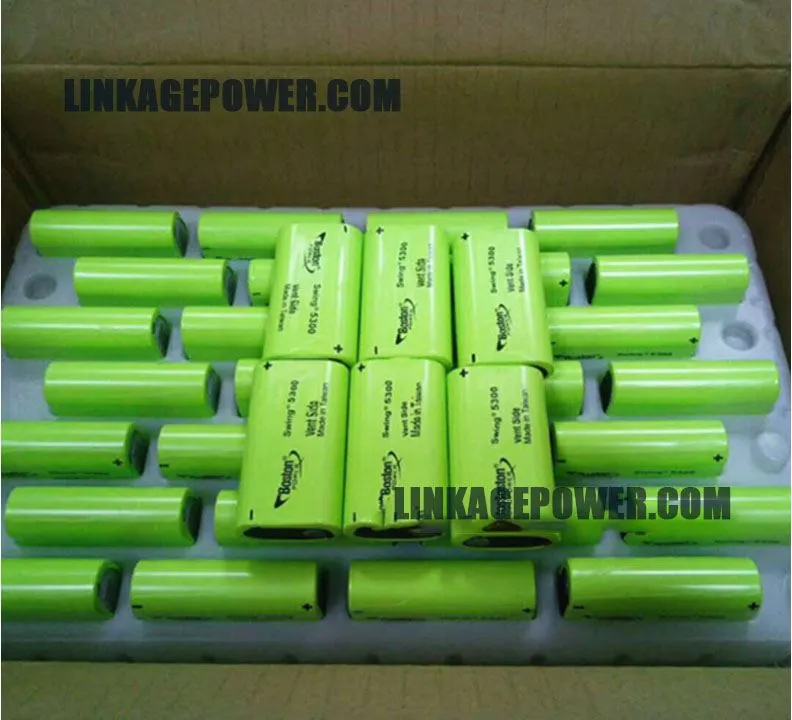

INSIDE CONFIGURATION

With professional mechanical design, with special bracket inside there is not any moving at all.

to lay the battery block, and the each little space of the cells will be easy for the air mesh,

We custom 48V 100Ah,200Ah,300ah,400ah,500ah,600ah……battery for all kind of applications.
