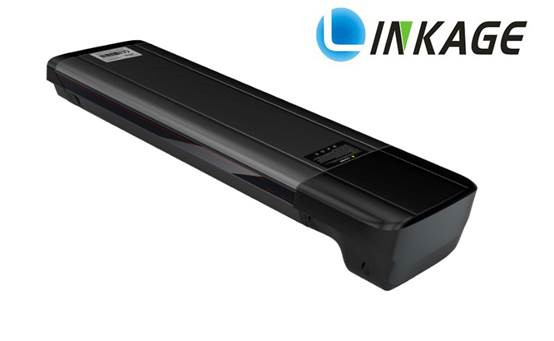

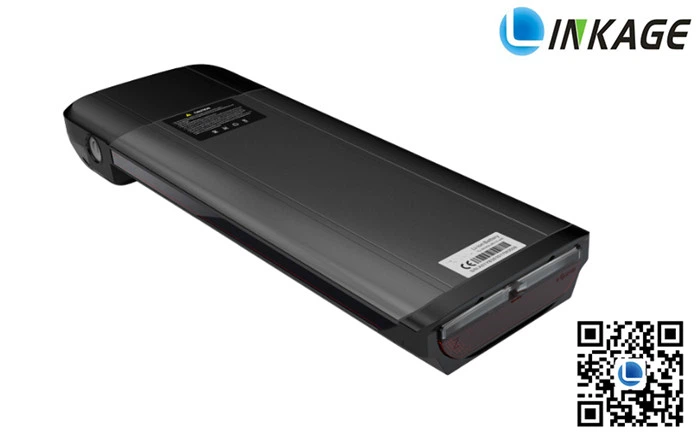

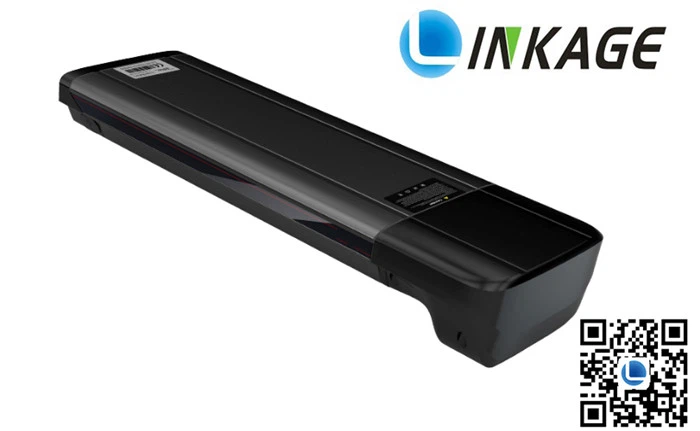

Samsung Electric Bike Battery 36V 13AH

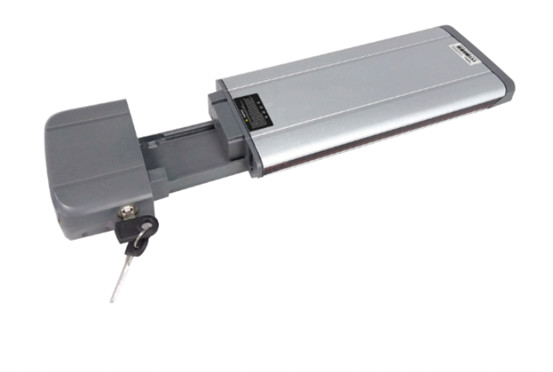

Custom Rear rack 36V 13AH E-Bike battery for electric bike

Specification

Name E bike battery 36V 13Ah

Output voltage 42V-30V

Nominal voltage 36V

Nominal capacity 13 AH

Packing Aluminum shell

Max continuous discharging current 10A

Max peak current 13A

Max charging voltage 42V±0.05V

Dischaeging End Voltage 3.0V±0.05V

Operating Temperature Charge -10~45℃

Discharge  -10~60℃

Warranty : 1 year

Cycle Life: ≥600 times
Charge&Discharge Mode: CC&CV
Certification: RoSH,CE,UN38.3,MSDS
Applicaiton: Electric bike,E-scooter etc
Battery Hopower Retention (power strorage: 1 month): ≥98%

Product feature:
1.Safe:Rigid aluminum alloy housing protection, BMS or PCB built inside to protect the battery
over charge or discharge.
2.Environmental-friendly: Accredited with RoHS, without any hazardous and noxious substances.
3.Lighter and smaller: 1/5weight of lead acid battery, 70% size/weight of Ni-MH/Ni-Cd battery. 4.Powerful: Able to discharge at 20C at 65°C max.
5.Long cycle life: Over 1000 cycles with capacity staying at minium 80%.
6.Wide temperature range: Available for use when the temperature ranges from -20°C to 70°C.
7.Quality assurance: BV and SGS approved supplier, with TS16949 and ISO9001 quality management certificates and UL, CE,IEC62133, RoHS certificates.

it also can add the wireless communication module inside it to see the all battery parameters:

li-ion battery pack with bluetooth Features:

1). With Bluetooth function, mobile phone APP connection;

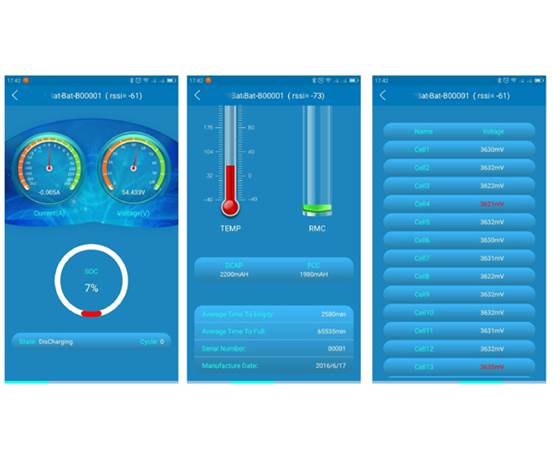

2). LCD display: such parameters like battery pack volt., single cell volt., work current, temp, cycle number, design capacity, time to full, time to empty,product serial, production date;

3). Communication interface: Bluetooth module modification,energy display module program;

4). Balancing charge interface: for balancing chargers.

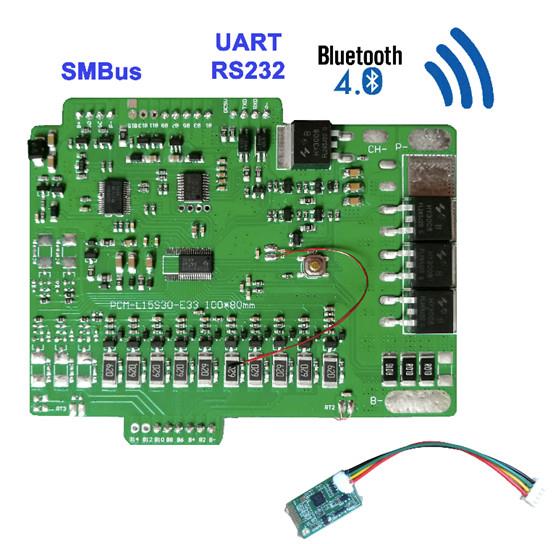

1. Select our Smart battery PCM which transmits the battery data through bluetooth module then displays it through mobile APP.

2. There are two types of Bluetooth module: one is integrated type in the PCM; the other is external type with connector.

3. The Bluetooth module supports many communication protocols of CANBus,SMBus,HDQ,I2C,RS232,RS485. It’s also compatible with different brands of control IC: TI,O2Micro,Maxim,Freescale and so on.

36V/48V 6.6Ah 7.8Ah 8.7Ah 8.8Ah 10.4Ah 10.5Ah 11Ah 11.6Ah 13Ah ,14Ah ,14.5Ah 17.5Ah
can be customized as your request.

Caution

• Do not immerse the battery in water or seawater, and keep the battery in a cool dry surrounding if it stands by.

• Does not use or leave the battery near a heat source as fire or heater

• Use the battery charger specifically for that purpose when recharging.

• Do not reverse the position and negative terminals.

• Do not connect the battery electrodes to an electrical outlet.

• Do not discard the battery in fire or a heater.

• Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.

• Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.

• Do not strike, trample or throw the battery.

• Do not directly solder the battery and pierce the battery with a nail or other sharp objects.

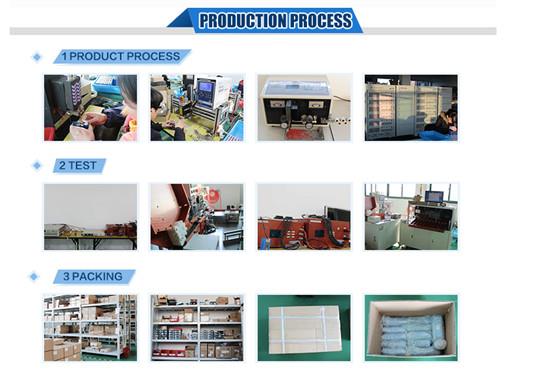

Battery Production Process

Why choose us?

• Our products are tested rigorously to ensure the highest level of quality.
• Proactive, enthusiastic, rigorous, efficient is our attitude, the pursuit of innovation, never complacent is our style.
• Our factory is equipped with advanced testing facilities to ensure that our products meet the highest standards of quality.
• We are committed to communicate effectively and build trust with the customers for our sustainable growth. We also focus on satisfying customer requirements with continuous improvement spirit.
• Our products are customizable to meet your unique requirements.
• We have professional, high-quality services and products, and pursue advanced management, excellent operation, and market recognition.
• Our Hailong Silver Fish Water Bottle Battery products are built to last and are designed to withstand the toughest conditions.
• Our company has always been adhering to the business philosophy of 'good quality and price, and satisfactory service', thinking about what customers think and what customers want.
• Our products are highly reliable and require minimal maintenance.
• We always pay attention to our customers' preferences and produce our Samsung Electric Bike Battery 36V 13AH according to their needs, wants and likes.
