AGV UGV Battery 48V 30AH

AGV UGV Battery 48V 30AH

AGV UGV battery 48V 30AH Specification: Four Main classical AGV Battery modules Other examples We are leading manufacturer if pioneer of lithium battery systems in China. Our smart batteries can display & monitor the batteries status and thus enable the devices to conserve and use power...
Send Inquiry
Product Introduction

AGV UGV battery 48V 30AH

Specification:

Voltage

51.2V

Capacity

30Ah (0.5C discharging rate )

Max continuous discharging current

30A

Max pulse discharging current

50A

Cycle life

≥ 2000 times

Operating temperature

Charging temperature: 0~45 deg. C Discharging temperature: -20~60 deg. C Humidity: 60 ± 10%R. H

Storage conditions

Temperature: -20~60 deg. C Humidity: 45 ± 10%R. H

Standard weight

18Kg

Self-discharging rate

When storing at ambient temperature after one month, the voltage of single battery is higher than 2V( Battery discharge to 24V)

When storing at ambient temperature after a year, the voltage of single battery is higher than 2V( 100% capacity)

Charge method

CC/CV

Charging voltage

57.6V

Charging current

≈ 10A

Battery protection method

Voltage monitoring technology

Over charge voltage threshold

3.90V

Over discharge voltage threshold

2.00V



Four Main classical AGV Battery modules

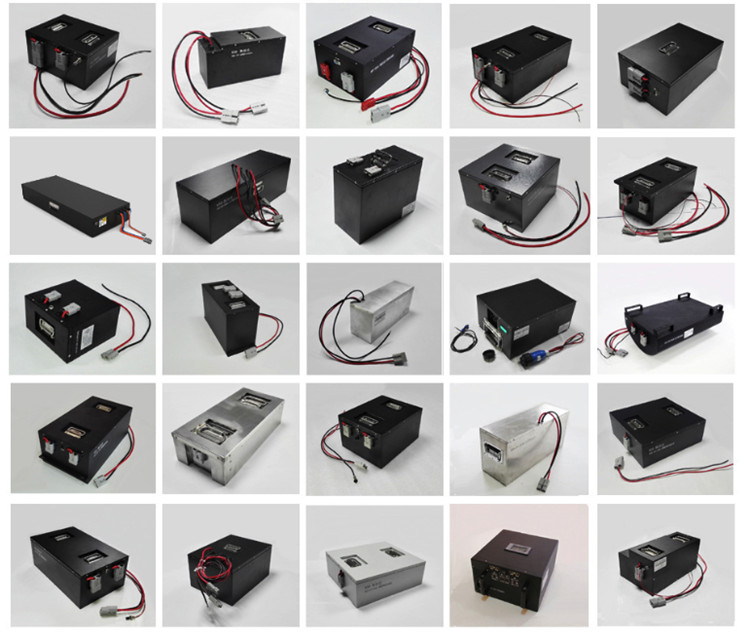

Other examples

We are leading manufacturer if pioneer of  lithium battery systems in China. Our smart batteries can display & monitor the batteries status and thus enable the devices to conserve and use power intelligently with a patented built-in battery management system (BMS) via blue-tooth or other communications through APP or on screen.

We are strong in R&D and manufacturing of smart battery systems, widely used in fields such as

E-mobility (e-bike, e-scooter, e-skateboard, e-motorcycle, e-tricycle/rickshaw, e-wheelchair, e-golf cart, e-forklift, e-tourist vehicle, RV/caravan, marine, etc.),

Energy Storage Systems (solar/wind system, telecom/base station, uninterruptible power supply/UPS/backup system) and engine starter batteries.

LINKAGE batteries can readily replace the outdated, bulky and pollutant Lead-Acid / AGM/ GEL/SLA batteries with the latest smart lithium battery technology.

Following are our company production manufacturing





WHY LITHIUM-ION BATTERY?






Caution

•     Do not immerse the battery in water or seawater, and keep the battery in a cool dry surrounding if it stands by.

•     Does not use or leave the battery near a heat source as fire or heater.

•     Use the battery charger specifically for that purpose when recharging.

•     Do not reverse the position and negative terminals.

•     Do not connect the battery electrodes to an electrical outlet.

•     Do not discard the battery in fire or a heater.

•     Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.

•     Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.

•     Do not strike, trample or throw the battery.

•     Do not directly solder the battery and pierce the battery with a nail or other sharp objects.



Why choose us?

  • Our AGV batteries are competitively priced to ensure affordability for our customers.
  • Our company taps the potential of our existing foundation to improve production quality and efficiency.
  • Our AGV batteries are designed to be safe and reliable in any application.
  • Our company adheres to the belief that product quality is supreme and after-sales service is supreme to ensure customers gallop on the road of adjustment in the era of science and technology.
  • We offer customized solutions to meet the unique needs of our customers.
  • The company has created a business model of "consulting as the guide, products as the support, and service as the core", and is committed to introducing high-quality products and solutions with leading technology to the market.
  • We take pride in our commitment to excellence and customer satisfaction.
  • We use continuous development of new products to maintain market competitiveness.
  • Our AGV batteries are designed to be easy to install and maintain.
  • We can provide sample designing, mass production, produce well-pleasing AGV UGV Battery 48V 30AH to clients, and create the satisfactional quality as well!



Hot Tags: agv ugv battery 48v 30ah, China agv ugv battery 48v 30ah manufacturers, suppliers, factory, Stacker Battery 51 2V 200Ah 24V, 80V 300Ah Battery For AGV, 48V 400Ah Electric Sweeper Battery, Stacker Battery 48V 200Ah 24V, 51 2V 500Ah AGV Battery, 48V 120Ah Forklift Battery
