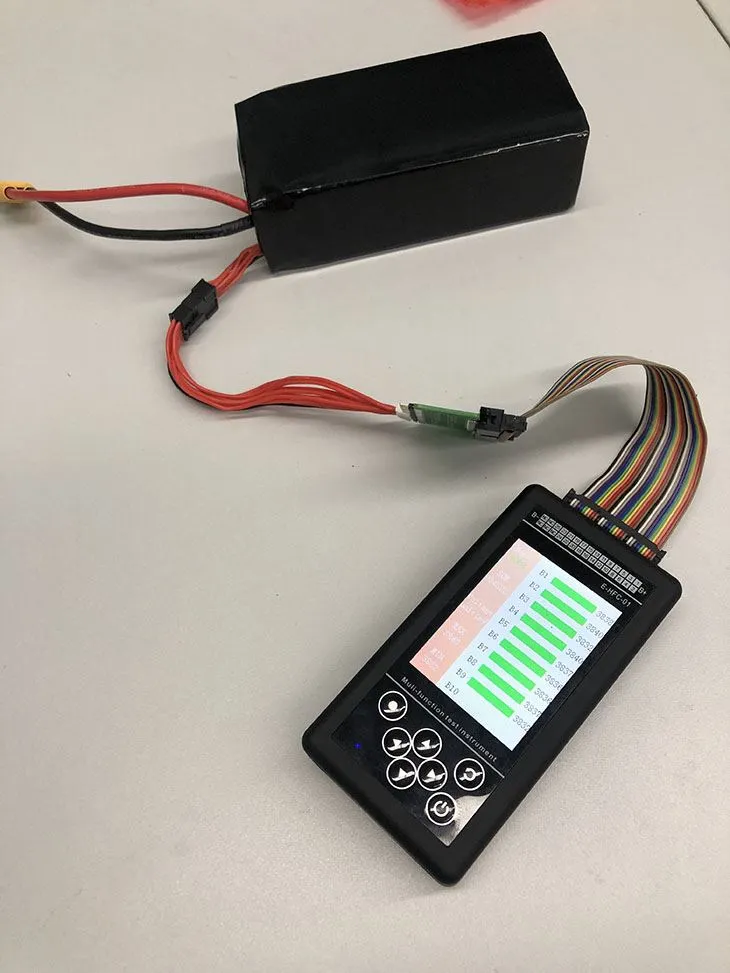

Handheld Digital Battery Tester 1-24S

Multi-function test instrument/Battery Doctor

Model: E-HFC-01

2.Product Specifications

Working environment temperature: -20℃-60℃

Environmental relative humidity: 65±20%RH

Battery capacity: 5000mAh

Support the number of battery strings: 1--24S can be set by yourself

Voltage measurement accuracy: ±0.5%

Internal resistance measurement accuracy: ±0.5%

Charging voltage: 5V

Dimensions: 135*70mm

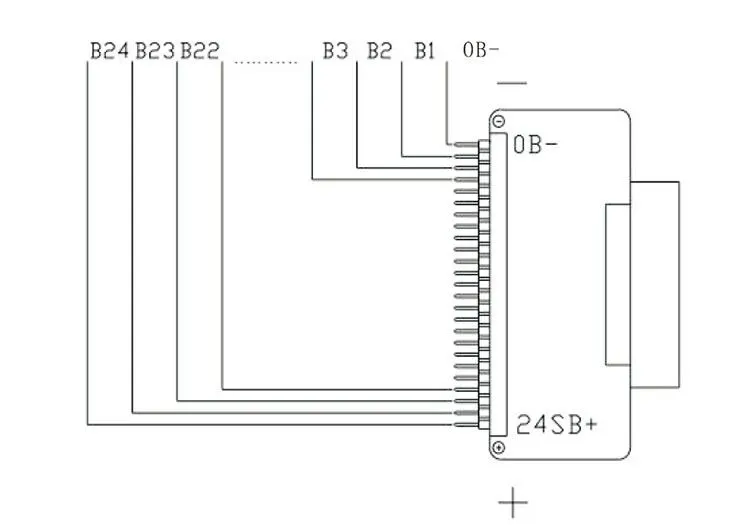

3.Wiring method

The detection port of this product is suitable for connecting

the battery pack with a collection line port spacing of 2.0.

When connecting, the negative pole of the battery pack is

aligned with 0B-, as shown in the above figure.

4.Button function

 Press the power button once to turn on

 Press the power button twice during startup,Shut down

 The blue light is always on and the power is sufficient

 The blue light flashes and the battery is insufficient

 The red light flashes during charging

 The red light is always on when full

5. Functional parameters

5.1. Battery pack inspection

For battery test, you can set the number of battery strings to be

tested,the type of battery cell, and the maximum allowable

pressure difference.

When the voltage value is displayed, press the left (right) key to

convert the internal resistance value.

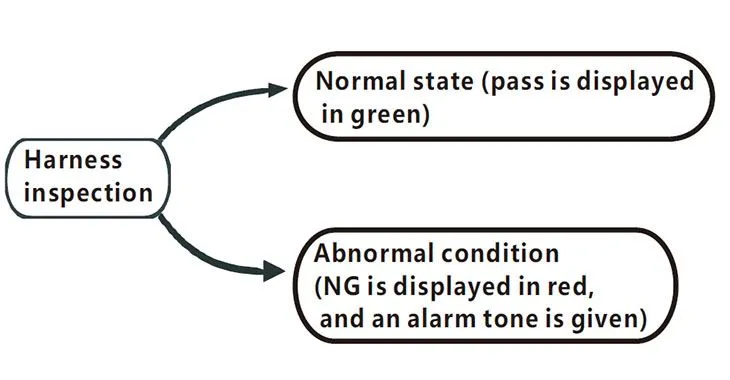

5.2. Harness inspection

After setting the number of test objects and the type of battery cell,

you candetect whether the connection of the battery harness to be

tested is normal and whether the wiring sequence is misaligned.

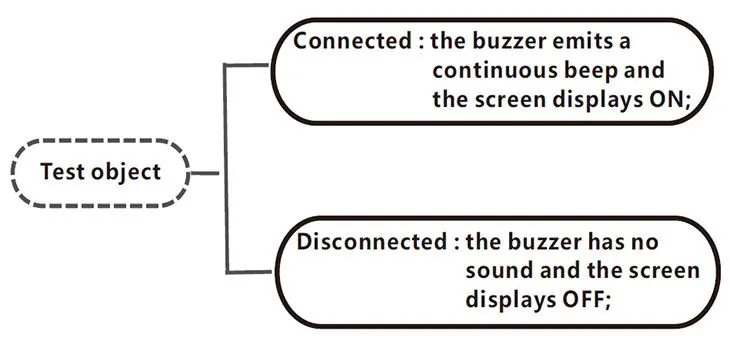

5.3. Continuity test

When the test object is connected, the buzzer emits a continuous

beep and the screen displays ON;

When the test object is disconnected, the buzzer has no sound and

the screen displays OFF.

5.4. Battery pack inspection

Connect the tester to 24 strings of reference power with the

same voltage. Enter the correct password 0710 and press OK,

then enter the voltage of the reference power supply, and

press the OK key to start calibration.

5.5. Battery pack inspection

Enter the buzzer switch interface, you can set whether the

buzzer sounds when alarming.

5.6. Brightness adjustment

You can adjust the screen brightness by entering the brightness

adjustment interface. There are three gears: low, medium

and high. The screen brightness is high by default.

5.7. Sleep

Automatic shutdown after 15 minutes of no operation.
