24V 80Ah AGV Battery

For Advanced AGV,with CAN BUS,RS485 COMMUNICATIONS INSIDE,Which you can read the parameters from the App in Celluarphone.

Send Inquiry

Product Introduction

Classical battery 24V 78AH for Advanced AGV

Specification:

24V60Ah Battery Pack Rechargeable Replacement Lithium Battery for AGV / Robot / Forklift
Item	Specification
Battery type	8S/24V/78Ah
Model no.	8S78AH
Chemistry	LiFePO4
Nominal Voltage	25.6V
Nominal Capacity	78Ah
Charge Voltage	29.2V
Charge Current	≤60A
Discharge Current	≤90A
Instantaneous Discharge Current	120A
Discharge Cut-off Current	21.6V
Internal Resistance	≤100mΩ
Life Cycle	＞2000
Temperature Protection	55℃
BMS	include BMS
BMS Protection	Short-circuit protection, over-charge protection, over-discharge protection, over-current protection, temperature protection and keep the battery power balance.
Communication	RS485&RS232
Case	Metal
Dimension	TBD
Weight	22Kg±1Kg
Warranty	12 months

Features

With weak current switch;

The battery comes with temperature protection,

Battery comes with power detection port

485 communication management: SOC management, fault warning.

The battery pack is safe and has a long cycle life;

Quick charge 0.5C charging.

The battery pack has a high cycle life, which is in line with the values of low carbon, energy saving and environmental protection;

24V-80AH-AGV-3

24v-80ah-2-agv

24V-80Ah-AGV-1

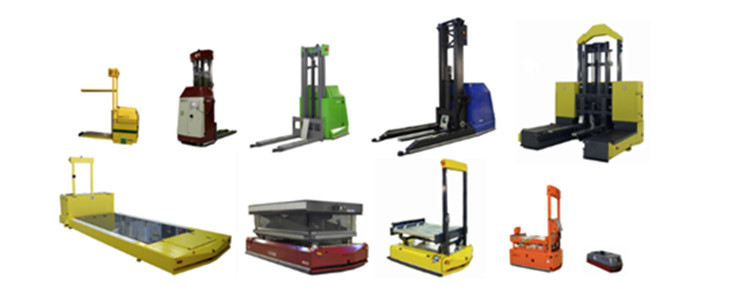

Four Main classical AGV Battery modules

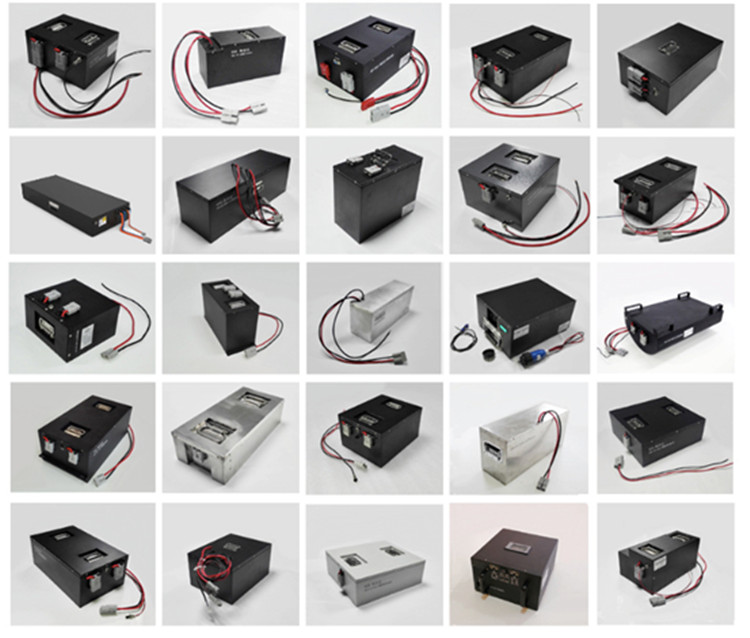

Other examples

24V/36V/48V 20Ah,30Ah,40Ah,50Ah,60Ah,70Ah,80Ah,90Ah,100Ah,200Ah,260Ah,300Ah,400Ah,500Ah,600Ah,…….CAN BE CUSTOMIZED

Precautions:

1.It is recommended to charge up the battery to 80% if you are going to store it for a period;

2.make sure the battery will be charged at least once every 3 months to ensure the best performance and cycle life ;

3.The battery should be stored in a dry and cool environment, keep away from fire and heat sourcers;

4.Avoid direct connection of positive and negative poles;

5.Can not be modified.
