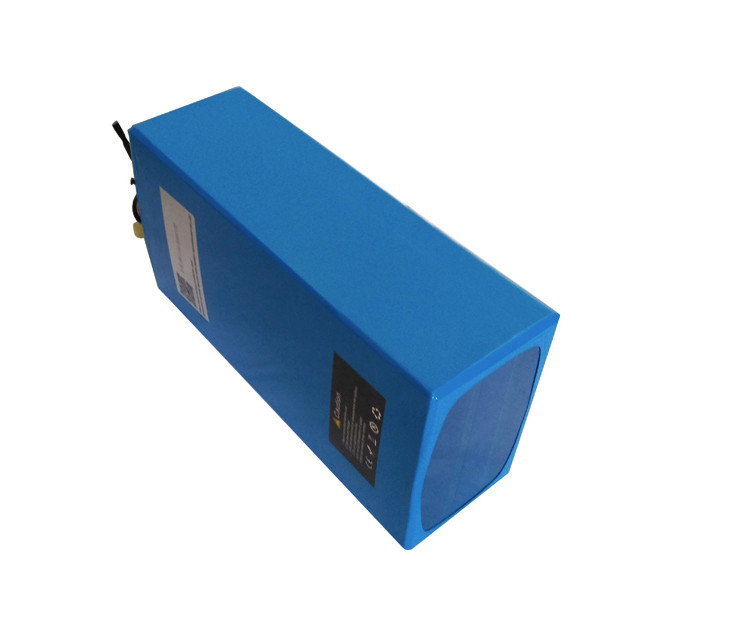

Underwater Robot Battery 25.9V
Custom light weight 25.9V 41.6ah battery for underwater robot
Specifications
|
No. |
Items |
Specifications |
|
1 |
Nominal Voltage |
25.2V(3.7v*7s) |
|
2 |
Nominal Capacity |
41.6Ah |
|
3 |
Cell inside |
Li-ion cell Samsung 3.7v 2600mAh |
|
4 |
Configuration |
7S16P |
|
5 |
Standard Charge Current |
8A (0.2C) |
|
6 |
Charge Current |
40A (1C) |
|
7 |
Protected Circuit Board(BMS) |
Custom |
|
8 |
Continue Discharge Current |
20A |
|
9 |
Peak Discharge Current |
30A can be customized |
|
10 |
Full Charged Voltage |
29.2V(4.2V per cell) |
|
11 |
Charge Cut-off Voltage |
29.4V (4.25V per cell) |
|
12 |
Discharge Cut-off Voltage |
21V (3V per cell) |
|
13 |
Battery Net Weight |
6.2kg |
|
14 |
Battery Dimension |
175mm*175mm*130mm(with 20A constant BMS built in) |
|
15 |
Connector |
Charging connector:T PLUG Discharging connector |
|
16 |
Operating Temperature |
Charging: 0°C ~ 45°C Discharging: -20°C ~ 55°C |
|
17 |
Storage Temperature |
(Recommended to store 20 ± 5°C for long term storage) |
|
18 |
Life Cycle |
>600 times (80% of initial capacity at 0.2C rate, IEC Standard) |
We use the best quality li-ion cell Panasonic 18650 2900mah NCR18650PF to make 24v 41.6Ah ,with long cycle life ,safety and high performance.
Battery with power display,can show voltage and capacity of battery pack .
Passed abuse tests of over-charge/discharge test, high-low temperature test, impact test and puncture test;
With good safety performance, without problems of short-circuit, leakage, inflammation and explosion;
Advantages of 48v battery pack:
1. Long life, large capacity and good shock resistance.
2. Low self-discharge and good discharge performance at low temperature.
3. Strong charging acceptance and quick-charging capability.
4. Strong over-discharge resistance and charge retention.
5. Maintenance-free and no acid or water for maintenance in usage.
6. Excellent large current discharge performance, and have obvious advantages in startup and climbing.
7. High temperature performance
8. Environmental friendly
9. Lighter weight smaller size
10. Most safe no explosion no fire

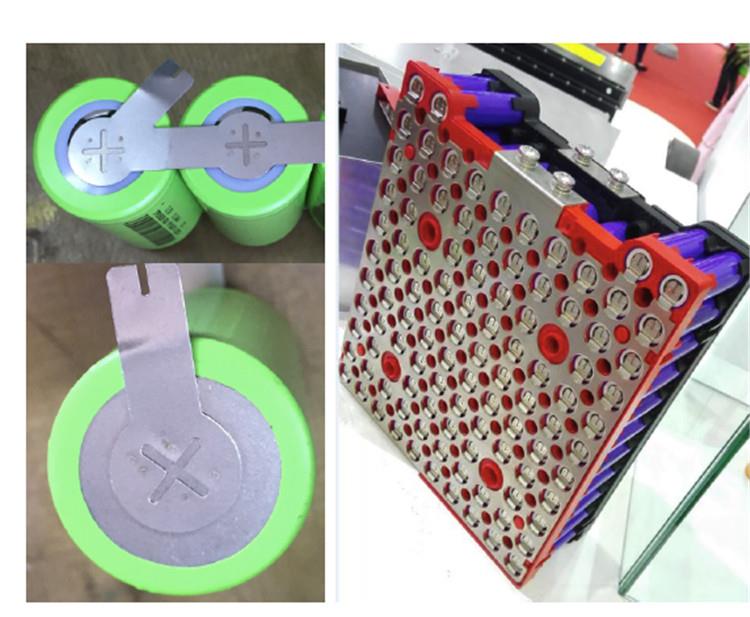

Strong configuration with nice soldering,not any moving at all,With bracket shelf to install the cells,which hace more space for the cells air flow to release the heat when charging and discharging.High quality BMS to protect any incidents occurs.
