Low Temp 48V 25AH Battery for Military Robot
Custom Low temp 48V 25ah light weight battery for military robot vehicle with Panasonics 3400mah cells 1500W
Specifications
No. | Items | Specifications |
1 | Nominal Voltage | 48.1V |
2 | Nominal Capacity | 25Ah |
3 | Cell inside | 18650 cell |
4 | Standard Charge Current | 5A (0.2C) |
5 | Max. Charge Current | 25A (1C) |
6 | Protected Circuit Board(BMS) | Custom |
7 | Continue Discharge Current | 45A |
8 | Peak Discharge Current | 90A |
9 | Full Charged Voltage | 58.8V(4.2V per cell) |
10 | Charge Cut-off Voltage | 59.5V (4.25V per cell) |
11 | Discharge Cut-off Voltage | 35V (2.5V per cell) |
12 | Battery Net Weight | 8.2 kg |
13 | Battery Dimension | 295*145*115mm / 275*210*95mm |
14 | Operating Temperature | Charging: 0°C ~ 45°C Discharging: -20°C ~ 55°C |
15 | Storage Temperature | (Recommended to store 20 ± 5°C for long term storage) |
16 | Life Cycle | >800 times (80% of initial capacity at 0.2C rate, IEC Standard) |
Specifications
48V 25Ah consists of many Panasonics NCR18650B cells mounted together in a honeycomb structure and spot welded together and with Bluetooth BMS built in than can monitor battery pack at any time.it makes you in the wild field military working even meet the very low temp,the battery will remains providing you reliable power for emergency SOS, this is the best low temp battery pack on the world.
Cell Inside:
BMS: 50Amps
This pack comes with a very advanced BMS (battery management system) with Texas Instruments IC inside which protects the pack from damage during charge and discharge. This BMS also has temperature protection to keep the pack from getting too hot.
It is a high power BMS which will allow the pack to put out 50amps continuous (2400 watts) and 100 amp bursts (3840 watts) although running this much power will drastically reduce packs life expectancy. so we recommend to not run your battery too hard if you expect it to last over a couple hundred charges.
Advantages of 48v battery pack:
Life Time Warranty
We provides a Limited Life time warranty to protect your investment in our products. With a life expectancy of up to 5000 cycles, you may never have to replace the batteries in your cart again. Even if you used the cart every day draining the batteries 100%, you could expect more than 10 years out of the batteries - 365 days per year X 10 years is 3,650 cycles.
Life at least 2000 cycles
Our batteries will maintain over 80% of their rated capacity after 2000 cycles at 100% depth of discharge. This means if you have a 100AH lithium battery, after 2000 cycles it will equal an 80AH battery. Simply put, if you went 100 miles when the lithium batteries were new, you would still be able to go 80 miles after 2000 cycles.
No Memory effect
Our lithium batteries have no memory and can be recharged at anytime no matter if you went 500 ft. or 50 miles. To get the best life out of your lead batteries, it is suggested you use the recommended depth of discharge every time before recharging.
Application
Military robot， Military vehicles, communications, RF amplifiers and charging stations, tourist coaches, yachts, wind and solar energy storage power, traffic signals.Strong configuration with nice soldering, not any moving at all,With bracket shelf to install the cells, which have more space for the cells air flow to release the heat when charging and discharging.High quality BMS to protect any incidents occurs.
Accessories
We use US Plug EU Plug Au Plug UK Plug Anderson XLR 3 Pin Plug XT60 XT90 DC to customize lithium & lifepo4 battery packs

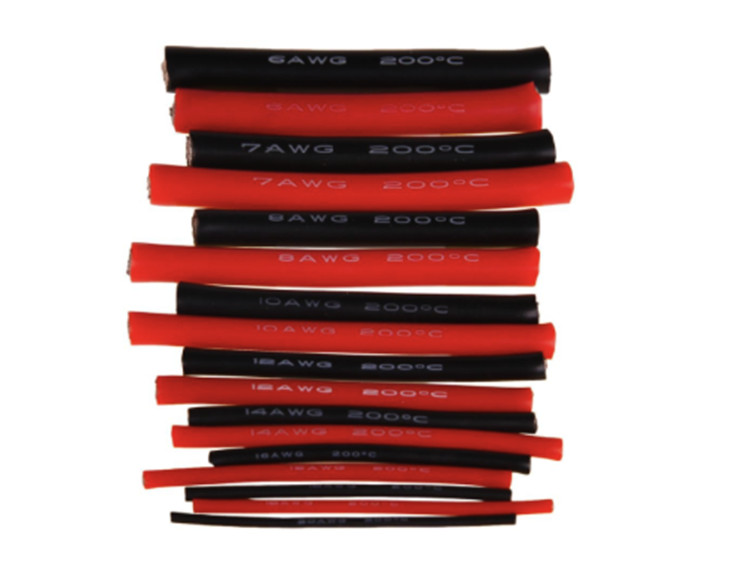

or Current Lead: we use various wilre in 8 12 14 types to make battery packs applicable for e motorcycle, ess , solar energy storage, ebike , e scooter, airwheel, hay mower and so on.
Product Feature Description
Security fuel bonding process to ensure module consistency and safety
Adopting 94-V0 safety & fire-proof raw material
Inter-module high insulation designed with FPC current acquisition
High voltage insulation with 2000V insulated connection material
1/6 density of iron light packing engineering plastic material to increase journey capacity
Primary Competitive Advantages
Military specification with auto. Grade material
Long life span with low resistant and self-discharge
Optimum design with light packing
Customized configuration are accepted
OEM & ODM orders are welcome
For Current Lead: we use various wilre in 8 12 14 types to make battery packs applicable for e motorcycle, ess , solar energy storage, ebike, escooter, airwheel, hay mower and so on.
Why choose us?
- As a supplier and manufacturer, we provide affordable prices for our products.
- We have good plans and marketable Low Temp 48V 25AH Battery for Military Robot.
- Our products have outstanding performance in extreme environmental conditions.
- We provide high-quality products at competitive prices, meet customers' current and future needs with fast and professional services, and bring predictable returns to users. Our company has won high praise and trust from users.
- Our products have good shock resistance and can withstand rough handling.
- We establish an open and inclusive talent introduction mechanism, and continuously expand the proportion of market-based selection and recruitment.
- Our factory has a strong R&D team that can provide innovative solutions for our customers.
- Our Low Temp 48V 25AH Battery for Military Robot is very safe and stable, as its design and product components are manufactured to high standards.
- Our factory has passed ISO 9001 certification, ensuring high-quality products and services.
- Our corporate culture is to reassure investors, satisfy customers, win-win stakeholders, praise from society, and happy employees.
Hot Tags: low temp 48v 25ah battery for military robot, China low temp 48v 25ah battery for military robot manufacturers, suppliers, factory, military batteries, 6tmf military battery, military rechargeable batteries, Low Temp 48V 25ah Battery For Military Robot, Lightweight 48V 30ah Battery For Military Robot, mil spec battery
