Golf Trolley Battery Pack 12V 28AH
Specification
High Quality Golf Trolley Battery | |
Model | LINKAGE 12V, 30Ah |
Brand | LINKAGE |
Cathode Material | Graphite |
Type | Lithium Iron Phosphate Battery |
Item Size | 174*173*113(L*W*H)mm |
Storage Period | 85000hrs |
Certification | ROHS,CE |
Weight | 4200g |
Application | Golf Trolley |
Rated Capacity | 30AH |
Customized | Acceptable |
Charging Time | 7.5h |
Nominal Voltage | 12V |
Lifespan | 40000h |
Charging Current | 6A |
Parameter
Item | Nominal | Remark | |||
Nominal Voltage | 12V | / | |||
Nominal Capacity | 30Ah | 0.2C discharge rate | |||
Min. Capacity | 28Ah | ||||
Size(L*W*H) | 174*173*113mm |
| |||
Weight | 4.2±0.2Kg | / | |||
Working Current | 30A |
| |||
Max. Continuous Current& Time | 40A | 20min | |||
50A | 10min | ||||
60A | 5min | ||||
80A | 2min | ||||
100A | 10S | ||||
160A | 4S | ||||
180A | 4S | ||||
200A | 4S | ||||
Over-current Protection | 500±50A | 5-20ms | |||
Discharge Cut-off Voltage | 10V | Over-Discharge Voltage | |||
Charging Voltage | 14.6±0.1V | Charge Mode: CC/CV | |||
Charging Current | 6A | 30A(Max) | |||
Internal Resistance | ≤35 mΩ | Namely, the resistance between discharge positive and negtive. | |||
Working Temp. | Charge Current: | 0℃~+45℃ | |||
Discharge Current: | (-) 20℃~+65℃ | ||||
Storage Temp. | 0℃~40℃ | Long term storage temperature | |||
Storage Humidity | RH: 65±20% | / | |||
Ambient Humidity | ≤85%RH | / | |||
Package Material | ABS | / |
Golf Trolley Battery | |||
Battery Capacity | 12V 16Ah ( 18holes) | 12V 22Ah (36holes) | 12V 16Ah ( 18holes) |
Cells | 26650 Lifepo4 | 26650 Lifepo4 | Samsung 18650 29E |
V cut off | 10.0v | 10.0V | |
Standard Charging | 3A CC(Constant current) Charge to 14.6V,Than CV( constant voltage)14.6v , till =0.8A | 3A CC(Constant current) Charge to 14.6V,Than CV( constant voltage)14.6v , till =0.8A | 3A CC(Constant current) Charge to 16.8 V,Than CV( constant voltage)14.6v , till =0.8A |
Maximum discharge current | 25A | 25A | 25A |
Cut off voltage | 10V | 10V | 10V |
Operating Temperature | Charging:0~45℃ Discharging:-20℃~70℃ | Charging:0~45℃ Discharging:-20℃~70℃ | Charging:0~45℃ Discharging:-20℃~70℃ |
Weight | 2.2±5% kg | 3.0±5% kg | 2.1±5% kg |
Packaging | Easy carry bag or plastic bag | Easy carry bag or plastic bag | Easy carry bag or plastic bag |
Accessories | T-Bar connector | T-Bar connector | T-Bar connector |
Charger | 14.6v 3.3a charger | 14.6v 3.3a charger | 16.8v 3.3a charger |
Warranty | 2 years | 2 years | 2 years |
Specification
1. Select our Smart battery PCM which transmits the battery data through bluetooth module then displays it through mobile APP.
2. There are two types of Bluetooth module: one is integrated type in the PCM; the other is external type with connector.
3. The Bluetooth module supports many communication protocols of CANBus,SMBus,HDQ,I2C,RS232,RS485. It’s also compatible with different brands of control IC: TI,O2Micro,Maxim,Freescale and so on.
Applications:
* Mobile base station back-up power
* Electric ship
* Uninterrupted Power Supply
* Golf cart
* Patrol car
* UAV
* Low-speed electric cars

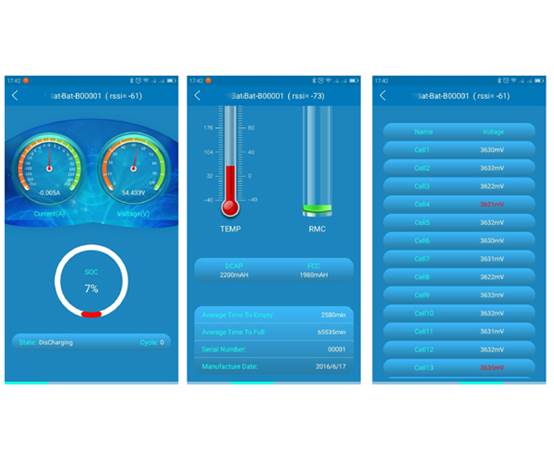

Mobile phone APP display：
1. Battery pack voltage
2. Single cell voltage
3. Current
4. State of charge（SOC）
5. Charge or discharge State
6. Cycles
7. Temperature
8. Remaining capacity（RMC）
9. Design capacity（DCAP）
10. Full charge capacity（FCC）
11. Average Time To Empty（ATTE）
12. Average Time To Full（ATTF）
13. Serial Number（SN）
14. Manufacturer Name
15. Communication frequency
16. Manufacture date
17. Battery curve
Remarks:
1. Show maximum total voltage of 16S Li-Ion/LiFePO4 battery pack;
2. Display Unit cell voltage supporting max. 30 units of Li-Ion/LiFePO4 cell
static discharge, EMC, current balancing technology, maintenance-free battery system, The water detection, smoke detection, collision warning system actively.
