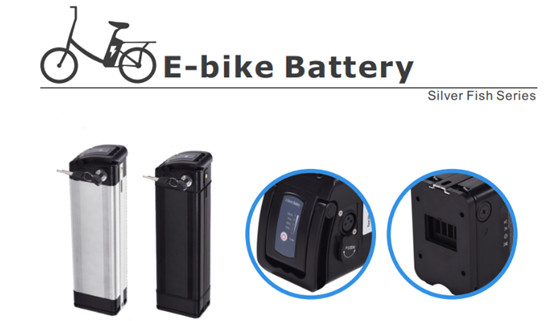

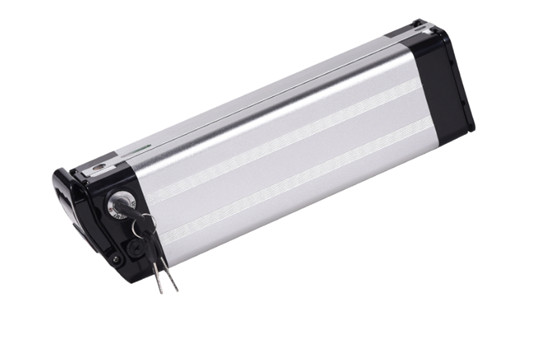

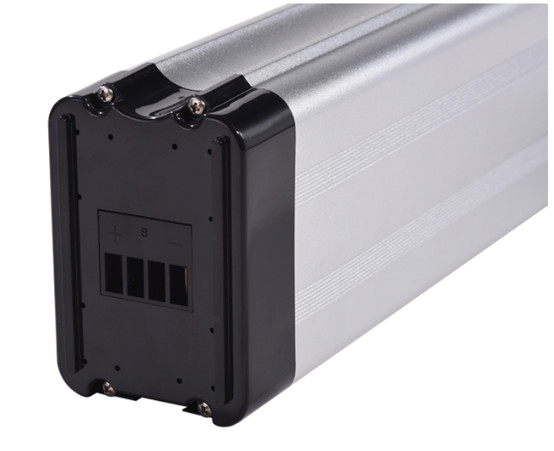

E Bike Battery Pack 36V 10.4AH Silver Fish
Custom 24V/36V 10S4P 10.4Ah silver fish battery for E-Bike
Main parameters
Name | E bikes battery silver fish series |
Size | 95(L)*91(W)*386(H)mm |
Nominal voltage | 36V |
Nominal capacity | 10.4Ah |
Max charge current | 0.5C |
Charging method | charge with constant current 1C to 42V, then charge with constant voltage 30V till charge current is less than 0.01C |
Max discharge current | 1C |
Discharge cut-off voltage | 30V, the over-discharge detection voltage of PCM |
Operating environment | Charging, 0°C ~ 65°C ; 65±20%RH |
| Discharging, -20°C~80°C ; 65±20%RH | |
Storage environment | -20°C~45° |
| 65±20%RH | |
| storage for a long time(>3 months) and the storage condition shall be:<35°C;65±20%RH;3.7~3.9V | |
CycleLife(80%Prime Capacity) : | >1000times |
warranty | Period of warranty: 12 months after sales |
Identification | With protection board PCM for over charging, over discharging, short circut,over voltage. |
| *Using the charger designated by the manufacture(AEC). | |
| *Don't throw the battery in fire or heat it. | |
| *Don't short-circuit. | |
| *Don't unpack the battery or change its structure. | |

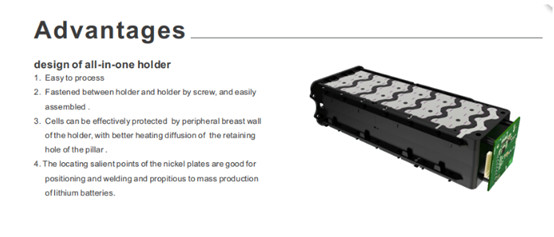

Pack design | * Battery pack should have sufficient strength and battery should be protected from mechanical shock |
| * No cell movement in the battery pack should be allowed. | |
| * No Sharp edge components should be inside the pack containing the battery. | |
Charging | Charging current and charging voltage should be less than specified in the Product Specification. |
| The charger shall be designed to comply with Product Specification. | |
| It is dangerous that charging with higher curren or voltage than Product Specification may cause damage to the cell electrical,mechanical safety performance. |
24V/36V/48V 6.6Ah 7.8Ah 8.7Ah 8.8Ah 10.4Ah 10.5Ah 11Ah 11.6Ah 13Ah ,14Ah ,14.5Ah 17.5Ah 20Ah
can be customized as your request.
Precautions:1.It is recommended to charge up the battery to 80% if you are going to store it for a period;2.make sure the battery will be charged at least once every 3 months to ensure the best performance and cycle life .3.The battery should be stored in a dry and cool environment, keep away from fire and heat sourcers; 4.Avoid direct connection of positive and negative poles; 5.Can not be modified.
Why choose us?
- We offer personalized services to ensure that each customer receives the attention and support they need.
- We adhere to our internationalization strategy and actively respond to the technological changes in the industry.
- We use state-of-the-art technology to ensure the accuracy and consistency of our products.
- Through various ways and means, we systematically strengthen the training of existing employees to continuously improve their cultural knowledge and technical business level.
- We are committed to customer satisfaction and offer exceptional support for all of our products.
- We hope for mutual benefit and win-win, and develop together with our partners, while people make the best use of their talents, so that employees have good development prospects while working for the enterprise.

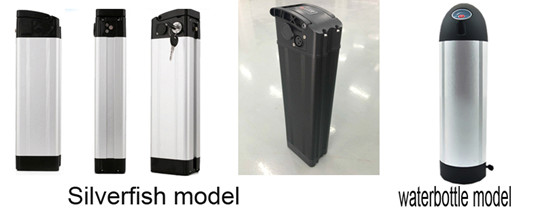

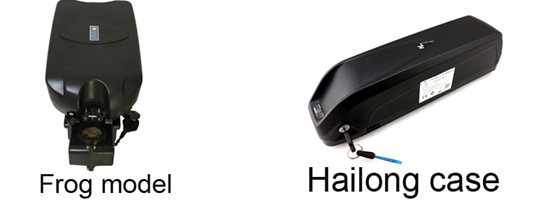

- Our Hailong Silver Fish Water Bottle Battery products are perfect for a wide range of applications.
- We recognize that with the development of global marketization, E Bike Battery Pack 36V 10.4AH Silver Fish development must respond quickly to market needs.
- Our factory is equipped with advanced testing facilities to ensure that our products meet the highest standards of quality.
- The company insists on working hard in a difficult environment to create social value. Everyone in the company strives to be a firm person, a strivers, a fighter, which is our continuous achievement and inexhaustible source of power.
