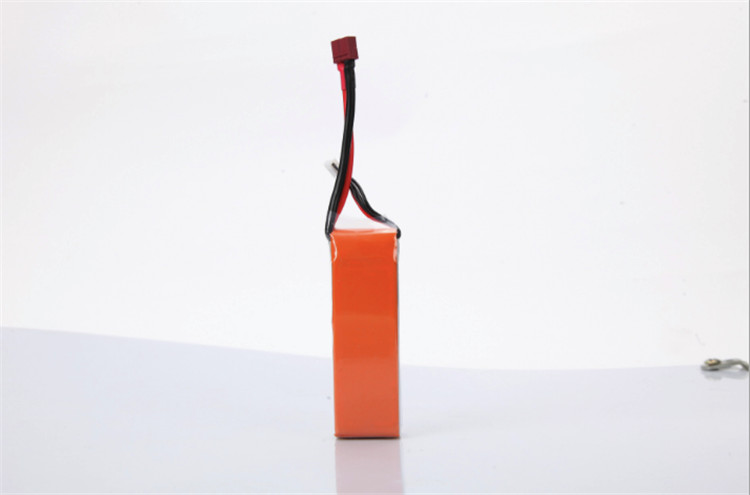

11.1V 2200mAH 35C 3S LIPO RC Battery
11.1V 2200mAh 35C 3S
11.1V 2200mAh 35C 3S
Voltage: 11.1V
Discharge rate: continuous 35C
Capacity: 2200MAH
Dimensions: 24*34*105(mm)
Battery: lithium Polymer battery
Product Features
1, continuous discharge rate 35C;
2, strong outbreaks.
3, long recycling life;
4, good safety performance and light weight.
5, the discharge platform is high as 3.8V
6, ultra-low internal resistance, fast charging to 5C
7, good consistency of the cells The magnification and capacity are real standard parameters!
Can be widely used: aircraft model, car model, boat model, gun model, toys, robots, unmanned aircraft and other fields.
Applicant: big multirotor, UAV, UAS, Drone ,can be with 14kg,16kg,big UAV for agriculture pesticide spraying.
High Discharge platform, more powerful, long endurance time, increase the working efficiency.
We are packed with vibration-proof & fire-proof material and our luxury battery box ensuring you get your battery in perfect condition. An automatic procedure & Computer system battery cell matching process ensures the batteries stability and quality. All the batteries will be done with full function testing and mechanical testing like the vibration…..
There are a variety of lithium chemistries and each has its good and bad points.
LiCoO2 Lithium Cobalt Oxide has a high energy density but it has a low discharge rate and is a flammable safety hazard.
LiCoO2 are the most prevalent Lithium Ion batteries but lithium manganese oxide (LMO) are also common.
Generally lithium ion batteries are in a cylindrical configuration in a metal can.
The Panasonic NCR-18650 and it's clones are the most commonly available Lithium Ion batteries
The Panasonic and most other Lithium Ion batteries now include internal short circuit and overload protection.
LiFePO4 Lithium Iron Phosphate has a lower energy density, but is safer, has a higher discharge rate and a longer lifetime.
LiFePO4 have become popular for RC transmitters, more capacity than NiMH batteries and faster charging.
They are occasionally used in planes but are heavier than other lithium batteries with equivalent capacity.
LiPo Lithium Polymer batteries are flat packs with a polymer separator with higher discharge rates and lower energy density.
LiPo batteries use normal lithium ion chemistries, the polymer separators reduce capacity but permit higher discharge rates.
Changing the physical and chemical nature of the separators, anode and cathode allow specific features to be optimized.
LiPo batteries are currently most commonly used for UAV but Lithium Ion has capabilites we need to consider.
Note: For the same capacity, the high-voltage battery can increase the flight time by 15-25% and the weight does not increase.
Reminding:
References for battery and model matching:
Discharge rate C ,for the new player
1.20C-30C can be between, the pursuit of powerful explosive players can choose Between 35C-50C.
Players can choose larger capacity if they are pursuing longer flight time
2.capacity.The battery, but the premise is: First, the battery compartment can accommodate large-capacity battery scale
In order to ensure that the battery with a large capacity does not cause the center of gravity of the model to deviate.
3, voltage. As long as you choose to use the same voltage as the battery on the model airplane, or
The user selects the corresponding voltage according to the ESC.
We welcome you want us customized the battery pack for your UAV/DRONE,So you only need to provide us such details for the custom battery:
1. Battery Capcity
2. Rated Voltage,full Voltage
3. Working current,peak current
4. Motor power,qty
5. Shape and size
6. Battery weight
7. Endurance time
8. Wires
9. Other requirements
10. Delivery time
There are the current type we already have the right solution!
|
Part No. |
Capacity |
Rated voltage |
Discharge Rate |
Continuous Current A |
Peak Current |
Dimension (T x W x L)mm |
Weight | ||
|
6S 25C 10000mAh |
10000 |
22.8V |
25C |
250 |
500A |
52 |
70 |
185 |
1350g |
|
6S 25C 12000mAh |
12000 |
22.8V |
25C |
300A |
600A |
60 |
70 |
185 |
1540g |
|
6S 25C 12000mAh |
12000 |
22.8V |
25C |
300A |
600A |
46 |
91 |
195 |
1540g |
|
6S 25C 14000mAh |
14000 |
22.8V |
25C |
350A |
700A |
53 |
91 |
195 |
1710g |
|
6S 25C 16000mAh |
16000 |
22.8V |
25C |
400A |
800A |
76 |
70 |
189 |
2000g |
|
6S 25C 16000mAh |
16000 |
22.8V |
25C |
400A |
800A |
56 |
91 |
199 |
2010g |
|
6S 25C 22000mAh |
22000 |
22.8V |
25C |
550A |
1100A |
66 |
91 |
215 |
2630g |
|
12S 25C 12000mAh |
12000 |
45.6V |
25C |
300A |
600A |
66 |
91 |
192 |
3100g |
|
12S 25C 14000mAh |
14000 |
45.6V |
25C |
350A |
700A |
106 |
91 |
192 |
3430g |
|
12S 25C 16000mAh |
16000 |
45.6V |
25C |
400A |
800A |
112 |
91 |
199 |
4000g |
|
12S 25C 22000mAh |
22000 |
45.6V |
25C |
550A |
1100A |
132 |
91 |
215 |
5200g |
|
12S 25C 32000mAh |
32000 |
45.6V |
25C |
400A |
800A |
112 |
91 |
210 |
8000g |
|
20S 25C 32000mAh |
32000 |
76V |
25C |
400A |
800A |
93 |
183 |
210 |
13800g |
