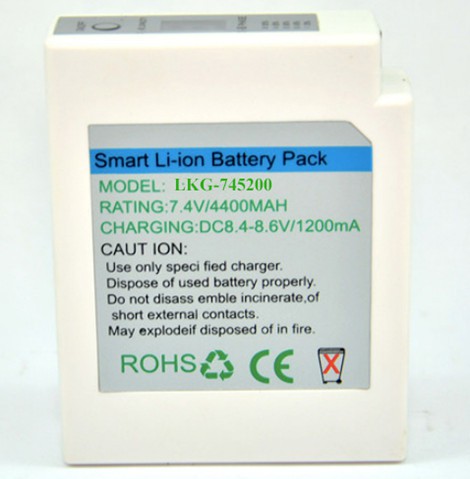

7.4V 5200mAh for Air Conditioning Clothes Japan
7.4v 5200mah 4400mAh rechargeable li ion battery for air-conditioned clothing with UN38.3 CE MSDS
battery
Brand | LINKAGE |
Model | LKG-74440L52Ah-VP |
Nominal voltage | 7.4v |
Nominal capacity(0.2C5A) | 5200mAH |
Standby current | ≤15μA |
working efficiency | ≥99% |
LED indicator | red-100% |
| orange-60% | |
| green--30% | |
red--99% Power output | |
| orange--75% Power output | |
| green--50% Power output | |
| flashing--25% Power output | |
4-steps power output regulator | ON/OFF |
Working voltage | 8.4V-6.0V |
Max output power | 15W MAX |
Resistance load | 5Ω-200Ω |
Charge voltage | 8.4V |
Discharge voltage | 6.0V |
Cycle life | 500times |
Internal resistance | ≤230 mΩ |
Size(mm) | 23*72*92 |
Input/output port | DC/1.35*35/7.0mm |
Weight | 210g |
Charge temperature | 0°C~45°C;32oF~113oF |
Discharge temperature | -20°C~60°C;-4oF~149oF |
Storage temperature | -20°C~45°C;-4oF~113oF |
Color | white |
Package | carton:200mm*300mm*430mm |
Long term storage performance | 75% storage for storage one year |
Package/Gross Weight | 80 pieces/ cartons, Outside carton,18.2Kg |
Warranty | one year |
With the high energy density samsung cells which will have higher capacity,but less weight.to make sure the device has more endurance time when working
Applications:
Heated gloves, heated snow sports wears, heated stadium seat cushions,
Heated base layers, heated underwears, heated jackets, heated vests,
Heated pants, heated clothing, heated clothes, heated garments,
Heated apparel, heated motorcycle clothes, heated motorcycle jackets,
Heated motorcycle vests, heated motorcycle pants, heated trousers,
Heated pants, warming apparel, warming clothes, heated military vests,
Heated military men belts, heated policemen vests, etc.
You can find more informations for our heated clothing battery pack as follows,
Type 1
Model | Voltage (V) | Capacity(mAh) | Thickness | Width | Length | Weight (g) | Note | Application |
LINKAGE-7.4V4400mAh | 7.4V | 4400mAh | 23.0 | 72.0 | 92.0 | 230.0 | 1. LED indicator | heated clothes , |
LINKAGE-7.4V5200mAh | 7.4V | 5200mAh | 23.0 | 72.0 | 92.0 | 230.0 | 1. LED indicator | |
LINKAGE-7.4V6000mAh | 7.4V | 6000mAh | 23.0 | 72.0 | 92.0 | 230.0 | 1. LED indicator | |
LINKAGE-7.4V4400mAh | 7.4V | 4400mAh | 23.0 | 72.0 | 92.0 | 230.0 | 1. Digital indicator | heated clothes , |
LINKAGE-7.4V5200mAh | 7.4V | 5200mAh | 23.0 | 72.0 | 92.0 | 230.0 | 1. Digital indicator | |
LINKAGE-7.4V6000mAh | 7.4V | 6000mAh | 23.0 | 72.0 | 92.0 | 230.0 | 1. Digital indicator | |
LINKAGE-12V2600mAh | 12V | 2600mAh | 23.0 | 72.0 | 92.0 | 180.0 | 1. LED indicator | heated clothes , |
LINKAGE-12V3000mAh | 12V | 3000mAh | 23.0 | 72.0 | 92.0 | 180.0 | 1. LED indicator | |
LINKAGE-14.8V2200mAh | 14.8V | 2200mAh | 23.0 | 72.0 | 92.0 | 230.0 | 1. LED indicator | heated clothes , |
LINKAGE-14.8V2600mAh | 14.8V | 2600mAh | 23.0 | 72.0 | 92.0 | 230.0 | 1. LED indicator | |
LINKAGE-14.8V3000mAh | 14.8V | 3000mAh | 23.0 | 72.0 | 92.0 | 230.0 | 1. LED indicator | |
LINKAGE-7.4V4400mAh(2013 new for air-conditioned clothes) | 7.4V | 4400mAh | 23.0 | 72.0 | 92.0 | 230.0 | 1. Digital indicator | air-conditioned clothes, |
Type 2
Model | Voltage (V) | Capacity(mAh) | Thickness | Width | Length | Weight (g) | Note | Application |
LINKAGE-3.7V2200mAh (2013 new) | 3.7V | 2200mAh | 22.0 | 35.0 | 70.0 | 65.0 | 1. LED indicator | Heated shoes, |
LINKAGE-3.7V2600mAh (2013 new) | 3.7V | 2600mAh | 22.0 | 35.0 | 70.0 | 65.0 | 1. LED indicator | |
LINKAGE-3.7V3000mAh (2013 new) | 3.7V | 3000mAh | 22.0 | 35.0 | 70.0 | 65.0 | 1. LED indicator |
Type 3
Model | Voltage (V) | Capacity(mAh) | Thickness | Width | Length | Weight (g) | Note | Application |
LINKAGE-3.7V2600mAh | 3.7V | 2600mAh | 15.0 | 48.0 | 65.0 | 65.0 | 1. LED indicator | heated gloves, |
LINKAGE-3.7V3000mAh | 3.7V | 3000mAh | 15.0 | 48.0 | 65.0 | 70.0 | 1. LED indicator | |
LINKAGE-7.4V1500mAh | 7.4V | 1500mAh | 15.0 | 48.0 | 65.0 | 70.0 | 1. LED indicator | |
LINKAGE-3.7V3000mAh | 3.7V | 3000mAh | 23.0 | 40.0 | 69.0 | 70.0 | 1. LED indicator | |
LINKAGE-7.4V1500mAh | 7.4V | 1500mAh | 23.0 | 40.0 | 69.0 | 70.0 | 1. LED indicator |
Type 4
Model | Voltage (V) | Capacity(mAh) | Thickness | Width | Length | Weight (g) | Note | Application |
LINKAGE-7.4V2200mAh | 7.4V | 2200mAh | 21.0 | 48.0 | 70.0 | 120.0 | 1. LED indicator | Far Infrared heated vest and waistcoat, |
LINKAGE-7.4V2600mAh | 7.4V | 2600mAh | 21.0 | 48.0 | 70.0 | 130.0 | 1. LED indicator | |
LINKAGE-7.4V3000mAh | 7.4V | 3000mAh | 21.0 | 48.0 | 70.0 | 130.0 | 1. LED indicator |
Type 5
Model | Voltage (V) | Capacity(mAh) | Thickness | Width | Length | Weight (g) | Note | Application |
LINKAGE-7.4V6600mAh(2013 new) | 7.4V | 6600mAh | 23.0 | 72.0 | 140.0 | 350.0 | 1. Digital indicator | heated clothes |
LINKAGE-7.4V7800mAh(2013 new) | 7.4V | 7800mAh | 23.0 | 72.0 | 140.0 | 350.0 | 1. Digital indicator | |
LINKAGE-7.4V9000mAh(2013 new) | 7.4V | 9000mAh | 23.0 | 72.0 | 140.0 | 350.0 | 1. Digital indicator | |
LINKAGE-12V4400mAh(2013 new) | 12V | 4400mAh | 23.0 | 720.0 | 140.0 | 350.0 | 1. Digital indicator | heated clothes |
LINKAGE-12V5200mAh(2013 new) | 12V | 5200mAh | 23.0 | 72.0 | 140.0 | 350.0 | 1. Digital indicator | |
LINKAGE-12V6000mAh(2013 new) | 12V | 6000mAh | 23.0 | 72.0 | 140.0 | 350.0 | 1. Digital indicator |
Why choose us?
- Our goal is to provide our customers with the highest level of service and quality possible.
- We are determined to create value for customers, let employees achieve development, adhere to sustainable development, create value for society, and achieve win-win cooperation with related parties.
- We are a Chinese factory that specializes in producing high-quality Air Conditioned Clothes Battery products and providing professional services.
- We actively communicate with customers, answer questions raised by customers, make records, organize and classify representative information related to the development and growth of the company, and timely transmit the information to relevant departments.
- We are committed to minimizing waste and maximizing efficiency throughout our supply chain and manufacturing process.
- We are favored by customers and have a high market reputation.
- Our Air Conditioned Clothes Battery products are easy to use and maintain, making them a popular choice for consumers worldwide.
- Our 7.4V 5200mAh for Air Conditioning Clothes Japan is characterized by elaborate design, fine selection of materials and can be customized according to customers' requirements.
- Our Air Conditioned Clothes Battery products are designed with the user in mind, incorporating ergonomic features and intuitive controls.
- We have made the concept of public welfare an important part of our corporate culture in fulfilling our social responsibilities.
