AGV UGV EV Battery 48V 41.6AH

AGV UGV /EV battery 48V 41.6AH

Specification:

Continuous operating current: ≤30A

Pulse discharge current: ≤90A

Charging current: ≤30A

Operating voltage range: DC54.0V-DC40.0V

Charging cut-off voltage: ≤54.0V

Discharge cut-off voltage: ≥40.0V

Charge and discharge port: Charge the same end: 10 square lines, red and black 50A Anderson plug, with output terminal length 80cm.

Communication function: RS485/RS232

Battery size (mm): H250*W150*L310

Battery weight (kg): about 16kg

With load power (kw): ≤1300kw

Charging temperature (°C): 0°C～45°C

Discharge temperature (°C): -20°C～60°C

Storage temperature (°C): -20°C～45°C

Battery life: 3000 cycles or more

Battery Warranty: 12 months

Shell Material: Cold Plate Paint (Black)

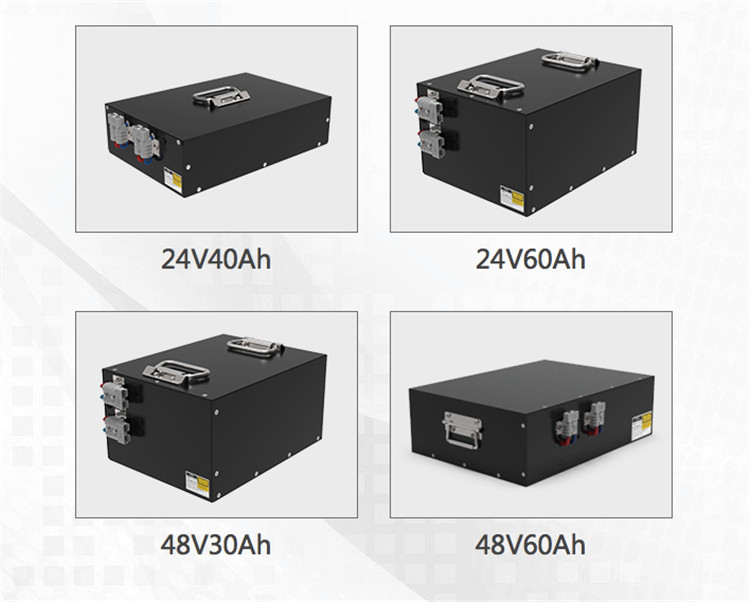

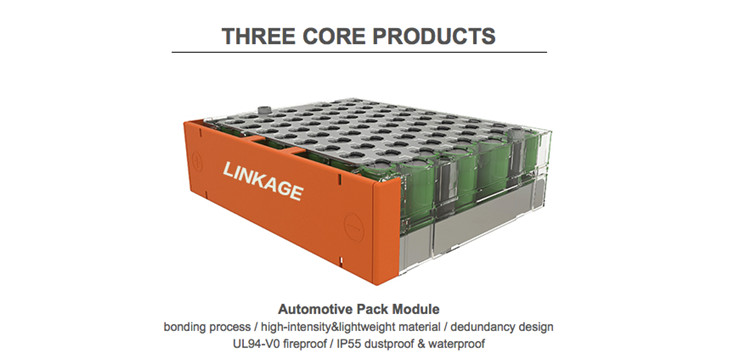

Four Main classical AGV Battery modules

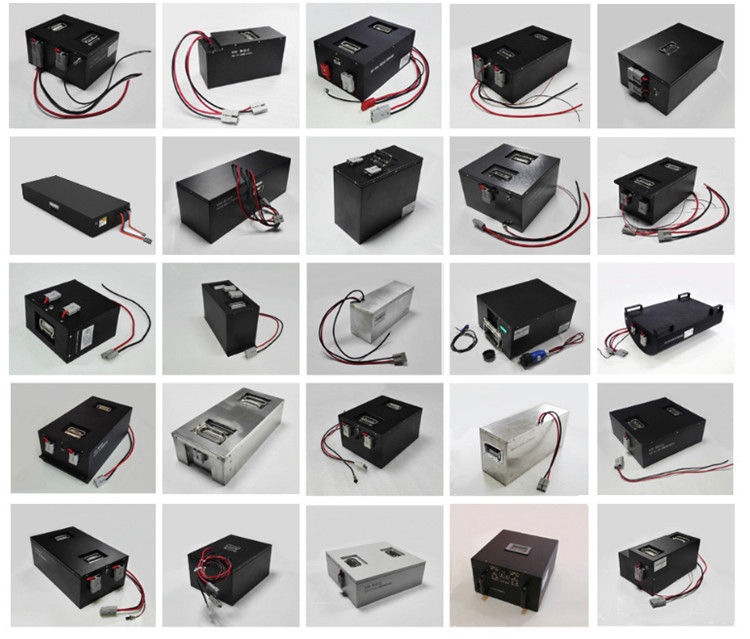

Other examples

24V/36V/48V 20Ah,30Ah,40Ah,50Ah,60Ah,70Ah,80Ah,90Ah,100Ah,200Ah,260Ah,300Ah,400Ah,500Ah,600Ah,…….CAN BE CUSTOMIZED

11Ah 11.6Ah 13Ah ,14Ah ,14.5Ah 17.5Ah 20Ah can be customized as your request.

Technical features:

• High Energy Density – Lithium ion batteries provide approximately 200% energy of nickel cadmium/ 160% energy of nickel-metal hydride per unit weight and provide 170% energy of cadmium/ 105% energy of nickel-metal hydride per unit volume.

• High Output Voltage – The average voltage of lithium ion battery is 3.7V per cell. Since the average voltage of nickel cadmium or nickel-metal hydride battery is 1.2V, only one-third the number of batteries are required compared to nickel cadmium and nickel-metal hydride batteries. Consequently, there is a significant saving in the battery cost as well as well as in its weight.

• Environmentally Friendly – No cadmium, mercury or other heavy metals are contained in  lithium ion batteries. The use of environmentally adapted materials makes lithium ion batteries fit for present and future use.

• Long Cycle Life – Charge and discharge can be repeated over 500 times with stable discharge voltage during normal operation.

Precautions:

1.It is recommended to charge up the battery to 80% if you are going to store it for a period;

2.make sure the battery will be charged at least once every 3 months to ensure the best performance and cycle life .

3.The battery should be stored in a dry and cool environment, keep away from fire and heat sourcers;

4.Avoid direct connection of positive and negative poles;

5.Can not be modified.

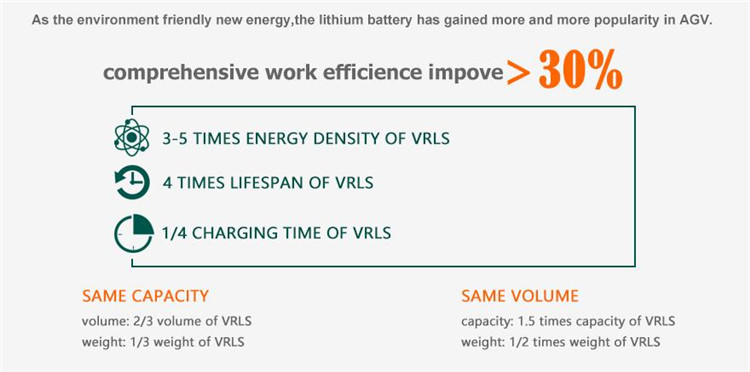

WHY LITHIUM-ION BATTERY?

Caution

•     Do not immerse the battery in water or seawater, and keep the battery in a cool dry surrounding if it stands by.

•     Does not use or leave the battery near a heat source as fire or heater.

•     Use the battery charger specifically for that purpose when recharging.

•     Do not reverse the position and negative terminals.

•     Do not connect the battery electrodes to an electrical outlet.

•     Do not discard the battery in fire or a heater.

•     Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.

•     Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.

•     Do not strike, trample or throw the battery.

•     Do not directly solder the battery and pierce the battery with a nail or other sharp objects.

Why choose us?

• We understand the importance of high-quality AGV batteries in various applications.
• We believe that a successful enterprise is composed of a well-trained, experienced and competent workforce.
• We are dedicated to delivering exceptional quality and value to our customers.
• We have developed a series of new AGV UGV EV Battery 48V 41.6AH through the fruitful transformation mode of cooperative introduction, digestion and absorption, and independent innovation.
• Our AGV batteries are designed to be safe and reliable in any application.
• We are so confident in our products and services that we guarantee that you will be 100% satisfied.
• We offer flexible and convenient shipping options to ensure timely delivery of our products.
• We establish a good image in the minds of our customers through distinctive promotional activities, flexible marketing methods, and thoughtful services.
• We use only the highest-quality materials in our battery manufacturing process.
• Our company's staff will be in line with the 'continuous self-improvement, strive to be the pioneer of the industry, create first-class products' as the purpose.
